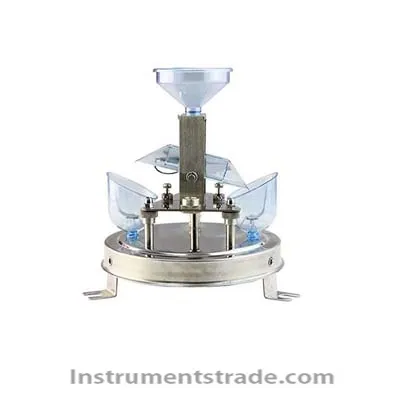

Main technical parameters: 1. The rain mouth size: 2000.60 mm Ф;Edge edge Angle: 40º ~ 45º 2. Resolution: 0.2mm 3. Rain-intensity range: 0.01mm ~ 4mm/min (maximum rain-intensity of 8mm/min is allowed) 4. Measurement accuracy: less than 3% 5. Signaling mode: two ways of dry spring pipe on and off signal output 6. Work environment: the environment temperature: - 10 ℃ to 50 ℃;Relative humidity:< 95% (40 ℃) 7. Size: Ф 216 mm * 460 mm
