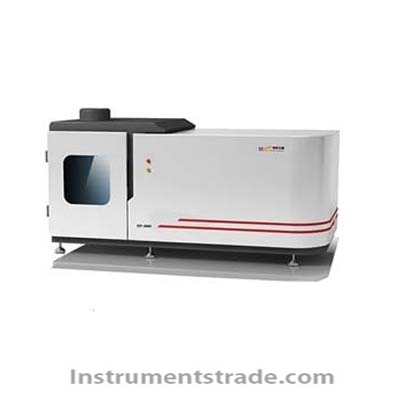

ICP-6800 Inductively Coupled Plasma Optical Emission Spectrometer

Product ID：FGdgoh0016

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
Request QuoteAdd To Cart
share:
  • Product Introduction
  • Consulting
  • Model NumberICP-6800
    Brand NameSHANGHAIMEIXI
    Payment TermsT/T, paypal
    ICP-6800 Inductively Coupled Plasma Optical Emission Spectrometer
    Introduction
    Inductively coupled plasma emission spectrometer(ICP6800) developed by Macylab Instruments with many years of technology accumulation. It is used to measure traces and traces of various substances (dissolvable in hydrochloric acid, nitric acid, hydrofluoric acid, etc.),and the content of metal elements or non-metallic elements. It is stable and reliable and with high degree of automation and easy operation.
    At present, instruments are widely applied in various fields such as rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and so on.
    Technical Parameters
    RFPower technical parameter：
    Circuit type: solid-state RF power supply, with function of automatch
    Frequency: 27.12MHz±0.05％
    Frequency Stability: ＜0.1%
    Power Output: 800W—1200W
    Power Output Stability: ＜0.3%
    Escaped RF radiation: 30cm away from the instrument, electric field: E﹤2V/m
    Sampling System Technical Parameter：
    Output working coil inner diameter ：25mm
    Torque tube: Three concentric, external diameter 20mm
    Coaxial nebulizer:Outer diameter 6mm
    Double barrel atomizing chamber: Outer diameter 34mm
    Gas Flow Controls
    1. Plasma Argon Flowmeter:（100-1000）L/h (1.6-16L/min)
    2. Auxiliary Argon Flowmeter:（10-100）L/h (0.16-1.66L/min)
    3. Carrier Argon Flowmeter（10-100）L/h (0.16-1.66L/min)
    4.Pressure Maintaining Valve（0-0.4MPa）
    5.Cooling Water：Temperature: 20-25℃, Rate of Flow>5L/min, Hydraulic Pressure>0.1MPa
    Spectrometer
    Optics：Czerny-Turner type
    Focal length: 1000 mm
    Grating: Ion Beam Etching Holographic Grating, 3600L/mm or 2400L/mm
    Reciprocal linear dispersion: 0.26nm/mm
    Resolution:≤ 0.007nm (3600 line grating)；≤0.015nm (2400line grating)
    Wavelength range: 3600 line grating:(190nm～500) nm；2400 line grating: (190nm～800) nm
    Minimum pace of stepping motor: ≤0.0006 nm
    Exit Slit:12μm;Entrance Slit:10μm

    Photoelectric Converter Performance
    Photomultiplier tube specification: R293/R928
    Negative HV on PMT: 0-1000V;Stability: ＜0.05%

    Overall Performance
    Wavelength range of scanning: 195nm～500nm(3600L/mm line grating);195nm～800nm(2400L/mm line grating)
    Repeatability: RSD(Relative Standard Deviation)≤1.5％
    Stability: RSD(Relative Standard Deviation) ≤2％
    Detection Limits (µg/L):
    • Introduction
      Inductively coupled plasma emission spectrometer(ICP6800) developed by Macylab Instruments with many years of technology accumulation. It is used to measure traces and traces of various substances (dissolvable in hydrochloric acid, nitric acid, hydrofluoric acid, etc.),and the content of metal elements or non-metallic elements. It is stable and reliable and with high degree of automation and easy operation.
      At present, instruments are widely applied in various fields such as rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and so on.
    • Related Products
    Learn More >
    Products
    Analytical instruments
    Physical property test
    Environmental monitoring and analysis
    Lab general equipment
    About us
    About this website
    Our service
    Product purchase
    Contact Us

    Newsletter

    Make Sure you dont miss interesting happenings by joining our newsletter program.

    Contact Us
    +86-18620722006
    instruments@instrumentstrade.com
    Copyright © 2017-2024 instrumentstrade.com All rights reserved.   Powered By UeeShop
    Element WL(nm) Limit   Element WL(nm) Limit
    La 408.672  <3.0   Cr       267.716  <5.0
    Ce 413.765   <5.0   Al         396.152   <5.0
    Pr 414.311  <5.0   Zr        343.823   <5.0
    Nd 401.225  <5.0   Ag       328.068   <3.0
    Sm 360.946   <10.0   Sr      407.771   <1.0
    Eu 381.967  <1.0   Au      242.795  <5.0
    Gd 342.247  <10.0   Pt    265.945    <5.0
    Tb 350.917    <3.0   Pd      340.458  <5.0
    Dy 353.170  <3.0   Ir        224.268   <10.0
    Ho 345.600    <3.0   Rh       343.489   <10.0
    Er 337.271   <3.0   Ru        240.272   <5.0
    Tm 313.126  <3.0   Ba     455.403    <1.0
    Yb 369.419  <1.0   As      228.812   ≤15
    Lu 261.541  <3.0   Sb        206.833   ≤15
    Y 371.030  <1.0   Bi        223.061   ≤10
    Sc 335.373    <1.0   Hg       253.652   ≤15
    Ta 226.230  <5.0   Pb        220.353   ≤15
    Nb 313.340  <5.0   Ga        294.364    ≤10
    Mn 257.610  <3.0   Se     203.985    ≤10
    Mg 279.553  <1.0   Sn       242.949   ≤20
    B 249.773  <10.0   Te        214.281   ≤10
    Zn 213.856  <3.0   Ta       226.230   ≤5.0
    Co 228.616  <3.0   Th         283.730    ≤10
    Si 251.611    <10.0   Tl        276.787    ≤30
    Ni 232.003  <5.0   Re       227.525   ≤5
    Cd 226.502  <3.0   Ge    209.426     ≤15
    Fe 239.562   <3.0   Os         225.585    ≤1
    Ca 393.366
