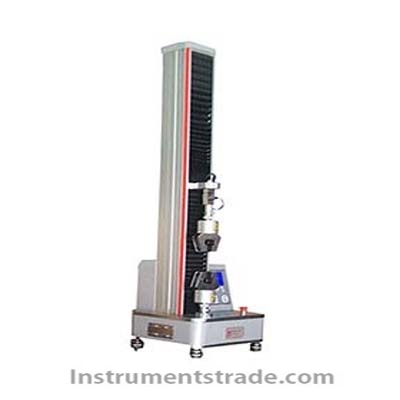

Brief introduction: Has a powerful numerical control display system, can be done within 3000 n in the whole material tensile, compression, bending, stripping, prick test, such as the LCD CNC set the required parameters, curve, displacement, force value can dynamic display on the digital display device, connecting the computer achieve full computer control and print the standard test report; Thoroughly change the traditional material testing machine the machine heavy, complicated operation and performance of the shortcomings of single. Appearance using squeeze type sealing plate and advanced treatment of the lacquer that bake, more show the beauty is generous. Main specifications 1.Max capacity： 3000N. 2.Load Accuracy： 0.01% 3.Measuring accuracy： < ±0.5% 4.Control：Full computer control, the printer to print 5.Valid width ： 150mm 6.Stroke： 500mm. 7.Tetxing speed ： 0.001~500mm/min . 8.Speed Accuracy： ±0.5%以内； 9.Stroke Accuracy： ±0.5%以内； 10.Displacement Accuracy： ±0.5%. 11.Safety device： . Safeguard stroke 12.Main Unit Weight ： 约85kg
Brief introduction: Has a powerful numerical control display system, can be done within 3000 n in the whole material tensile, compression, bending, stripping, prick test, such as the LCD CNC set the required parameters, curve, displacement, force value can dynamic display on the digital display device, connecting the computer achieve full computer control and print the standard test report; Thoroughly change the traditional material testing machine the machine heavy, complicated operation and performance of the shortcomings of single.
