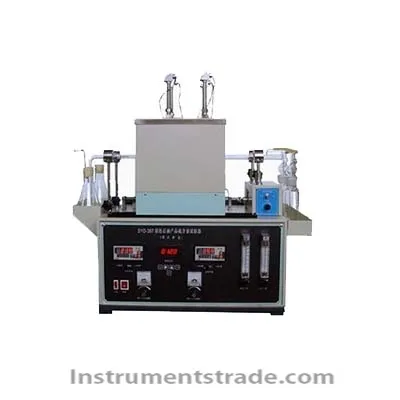

HSY-387 dark petroleum product sulfur content tester (tube furnace method)
Introduction
The sulfur content of the HSY-387 dark petroleum product sulfur content tester (tube furnace method) is determined according to the standard: GB/T 387. This instrument is suitable for dark petroleum products with sulfur content greater than 0.1% (m/m), such as lubricants, heavy petroleum products, crude oil, petroleum coke, paraffin and sulfur-containing additives. The structure of the instrument is reasonable and convenient to use, and a semi-automatic tube furnace experiment method is adopted. As long as the experimental program is set, the tube furnace will be heated and moved as required. The instrument uses a super-insulation insulation material, which is a tube furnace that can work normally at high temperatures. The instrument is not intended for use with lubricants containing metals, phosphorus and chlorine as well as lubricants containing such additives. Features
1. Intelligent measurement and control system, touch key parameter setting
2, large screen, high brightness LCD dot matrix Chinese display
3. Ultra-high temperature insulation material for tube furnace can easily control the experimental temperature
4, reasonable structural design: operation, use, maintenance is extremely convenient
5, flowing air flow rate: 0-800ml / min
6, the measurement and control system has a self-diagnosis function
7, tube furnace movement: automatically controlled by the system Technical Parameters
1. Setting range of tube furnace temperature: 500-950 °C (increase is 1 °C);
2, analysis time: about 3-5 minutes
3. Resolution: 0.001%
4, temperature control accuracy: set the temperature ± 3 ° C;
5, temperature sensor: nickel-chromium-nickel silicon thermocouple;
6, heating power: 1500W;
7, flowing air flow rate: 0-800ml / min (adjustable);
8. Tube furnace diameter: φ24mm;
9. Furnace moving position (three heating positions and one starting position): automatically controlled by the motor.
