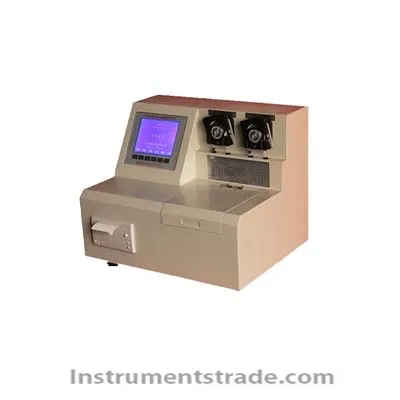

HSY-264A petroleum product acid value automatic tester Introduction
HSY-264A petroleum product acid value automatic tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T264 "Petroleum Acid Value Determination Method", applicable to the determination of acid value of transformer oil and turbine oil, which can meet petroleum requirements. The needs of refineries, power plants and scientific research units are one of the necessary instruments for oil analysis and quality inspection. Features
1. The instrument adopts blue LCD large screen display, Chinese menu, friendly interface, no logo button, easy to operate.
2, micro-computer automatic measurement, automatic printing test results, the test process to achieve computer automation, intuitive and simple operation.
3, using magnetic stirring, no noise, safe and reliable, small size.
4, the acid value measurement range is wide, the accuracy of the measurement results, is a high-grade, practical acidity measuring instrument. Technical Parameters
1, the power supply voltage ~ 220V ± 10%, 50Hz;
2, the maximum power consumption <100W;
3, the acid value determination range of 0.001 ~ 0.999 mgKOH / g;
4, the minimum resolution of 0.001 mgKOH / g;
5, measurement accuracy
When the acid value is <0.1, ±0.005 mgKOH/g;
5% of the value indicated when the acid value is ≥ 0.1;
6, repeatability 0.004 mgKOH / g;
7, the ambient temperature: 10 ° C ~ 40 ° C;
8. Relative humidity: <75%.
