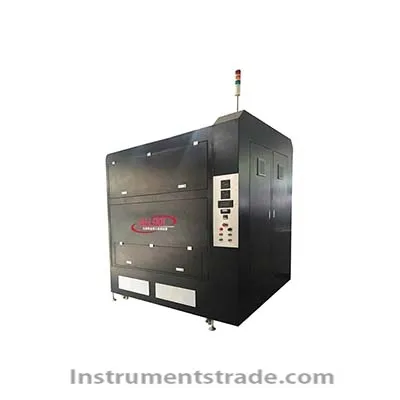

Functional characteristics: 1 for IEC 61215 in the hot spot durability test and a variety of light aging test 2 xenon light source, with IEC 60904-9 AM 1.5 analog spectrum distribution 3 lamp array light source design, adjust the position of the light source with three degrees of freedom, can achieve better intensity uniformity 4 constant current switching power supply, ensure stable light intensity in 40%-100% xenon lamp light power. 5 real-time monitoring, display and recording light intensity, temperature and other important parameters 6 the operation is simple, has the time, the power off memory, the radiation quantity accumulation computation and so on the function 7 circuit protection and personnel protection function is safe and reliable 8 combined lamp array, to achieve the convenience of the irradiation area Optical parameter: Source: long arc xenon lamp Spectral matching: AM 1.5, in compliance with the 60904-9 IEC standard Light intensity uniformity: less than 5% Light stability: less than or equal to 5% (1 hours) Light intensity range: (600~1000) W/m2 Light source life: 800 hours Effective radiation area: 2000mm*1200mm Irradiation direction: upper light source Electrical parameters: Power supply mode: AC 380V + 5% Rated power: 60KW
Functional characteristics: 1 for IEC 61215 in the hot spot durability test and a variety of light aging test 2 xenon light source, with IEC 60904-9 AM 1.5 analog spectrum distribution 3 lamp array light source design, adjust the position of the light source with three degrees of freedom, can achieve better intensity uniformity 4 constant current switching power supply, ensure stable light intensity in 40%-100% xenon lamp light power. 5 real-time monitoring, display and recording light intensity, temperature and other important parameters 6 the operation is simple, has the time, the power off memory, the radiation quantity accumulation computation and so on the function 7 circuit protection and personnel protection function is safe and reliable 8 combined lamp array, to achieve the convenience of the irradiation area
