Introduction:

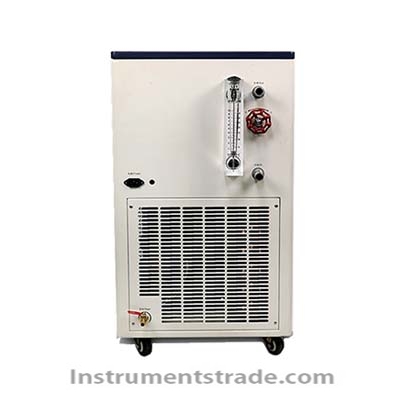

HS-SC series laboratory integrated chiller adopts PID digital temperature control technology and hot gas bypass technology. Hot gas bypass technology is currently the most popular refrigeration technology. It achieves precise temperature control through hot gas bypass. Work, no need to start and stop frequently. Combining the PID digital temperature control technology with the hot gas bypass technology, the temperature control precision is high, the cooling speed is fast, and the efficiency is high. Features:
1. Using key components provided by famous manufacturers, the performance is stable and reliable;
2. The hot gas bypass technology is combined with the PID temperature control, and the temperature control accuracy is up to ±0.1 °C;
3. Use a quiet design to reduce the impact of noise on the laboratory environment;
4. All stainless steel pipeline, high quality water quality protection system;
5. External flow regulating valve, customers can adjust the flow at any time;
6. The real-time display of the water level of the water tank makes it easy to know the real-time content of water in the water tank. Technical Parameters:
Model: HS-SC600LH
Maximum cooling capacity: 600w
Control temperature range: 5～35°C
Control temperature accuracy: ±0.1 °C
Circulating water flow: 5L/min
Outlet water pressure: 0.1MPa
Refrigerant: R134A
Power supply: AC220V±10%, 50Hz
Input power: 400w
Rated current: 2A
User power supply specifications: 5A
Water tank capacity: 2.5L
Dimensions: 270x365x365 mm
Ambient temperature: 5～35°C
Introduction:
HS-SC series laboratory integrated chiller adopts PID digital temperature control technology and hot gas bypass technology. Hot gas bypass technology is currently the most popular refrigeration technology. It achieves precise temperature control through hot gas bypass. Work, no need to start and stop frequently. Combining the PID digital temperature control technology with the hot gas bypass technology, the temperature control precision is high, the cooling speed is fast, and the efficiency is high.
