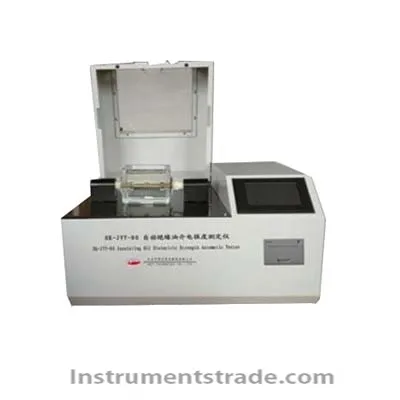

HK-JYY-80 automatic insulating oil dielectric strength tester Introduction: HK-JYY-80 automatic insulating oil dielectric strength tester is based on the latest national standard "GB/T 507-2002 insulation oil breakdown voltage measurement method", "DL/T 429.9-91 insulating oil dielectric strength measurement method", IEC 156:1995 "Insulating oil power frequency breakdown voltage measurement method", ASTMD1816, ASTMD877 research, development, and production of single oil cup insulation oil pressure tester. The display is intuitive, the operation is simple, the measurement is accurate, the repeatability is good, the appearance design is beautiful, and the structure is reasonable. It draws on the company's strong technical advantages, fully summarizes the company's more than ten years of field experience, draws on and digests advanced technologies at home and abroad, and a new generation of powerful instruments that can be widely used in power, petroleum, petrochemical and other fields . It has the characteristics of accurate measurement and easy operation. The display adopts a five-inch color touch screen, bilingual display in Chinese and English. Breakdown voltage/dielectric strength is an important indicator for assessing the electrical strength of insulating oil. It is a measure of the ability of insulating oil to withstand voltage inside electrical equipment. This indicator reflects whether there are moisture, impurities and conductive particles in the oil, and their The severity of the impact on insulating oil performance. Features: 1. Intelligent instrument platform, touch screen operation and control 2. With power supply voltage and frequency automatic detection and calibration functions 3. With automatic power-off when the cover is opened, automatic power-off when over-voltage and over-current, and fault self-diagnosis functions to ensure safe and reliable use 4. Parameters such as boost rate, test times, standing time and other parameters can be set as needed, and the buzzer will remind after the test is over 5. With automatic stirring function, it can eliminate uneven oil sample and air bubbles 6. Standard Ethernet interface (can be connected to LIMS system) and USB interface, optional RS-232 serial port 7. Standard disk electrode (DL/T 429.9), optional spherical electrode, spherical cap electrode (GB/T 507), to meet the different needs of users Technical Parameters: Measuring range: (0～80)kV Voltage measurement error: ≤±3% Resolution: 0.1kV Number of test cups: single cup Power-off time after breakdown: ≤10ms Temperature and humidity range: Temperature: (-40.0～80.0)℃, accuracy: ±0.5℃; Humidity: (0～90.0)%RH, accuracy: ±2%RH; Resting time: (1～10) min (adjustable) Boost interval: (1～10) min (adjustable) Number of experiments: (1～6) times (adjustable) Boosting speed: 2kV/S, 3kV/S (optional) Boost rate error: ±10% Electrode type: disc electrode (standard), spherical cap electrode, spherical electrode (optional) Inter-electrode spacing: 2.5mm (adjustable) Stirring method: magnetic stirring speed: 250r/min～300r/min; Printing function: The instrument has a built-in micro thermal printer, which can choose to print test results automatically or manually Storage function: 500 test records can be stored, and the records can be viewed and printed according to the operation date External communication: standard Ethernet interface (can be connected to LIMS system) and USB communication interface, optional RS-232 serial port Power supply: AC (220±10%) V, (50～60) Hz Power: ≤170W Dimensions: 550 mm×465 mm×410mm (length * width * height) Weight: 35 kg
Introduction: HK-JYY-80 automatic insulating oil dielectric strength tester is based on the latest national standard "GB/T 507-2002 insulation oil breakdown voltage measurement method", "DL/T 429.9-91 insulating oil dielectric strength measurement method", IEC 156:1995 "Insulating oil power frequency breakdown voltage measurement method", ASTMD1816, ASTMD877 research, development, and production of single oil cup insulation oil pressure tester. The display is intuitive, the operation is simple, the measurement is accurate, the repeatability is good, the appearance design is beautiful, and the structure is reasonable. It draws on the company's strong technical advantages, fully summarizes the company's more than ten years of field experience, draws on and digests advanced technologies at home and abroad, and a new generation of powerful instruments that can be widely used in power, petroleum, petrochemical and other fields . It has the characteristics of accurate measurement and easy operation. The display adopts a five-inch color touch screen, bilingual display in Chinese and English. Breakdown voltage/dielectric strength is an important indicator for assessing the electrical strength of insulating oil. It is a measure of the ability of insulating oil to withstand voltage inside electrical equipment. This indicator reflects whether there are moisture, impurities and conductive particles in the oil, and their The severity of the impact on insulating oil performance.
