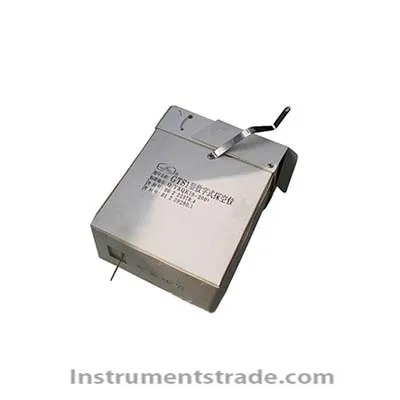

GTS1 Digital Radiosonde
Introduction
In operation with GFE (L) 1 Secondary Radar (also named L Band Radar), GTS1 digital radiosonde can
measure the atmospheric temperature, pressure, relative humidity, wind direction and wind velocity from groundup to an altitude of 30,000m. In 2001, GTS1 came into use in some upper air stations as the new generation upper air sounding system in China.Up to now, in China, there are 80 GTS1-L Band Secondary Radar Upper-air Stations.
Features
The ground installation includes GFE (L) 1 secondary Radar and the computer terminal with the
corresponding recording and processing equipments, and also the ground check set JKZ1.
GFE (L) 1 SECONDARY RADAR
The 1680MHz receiver is located in the antenna unit for radar measurement system, so that the loss of UHF
in the cable is reduced a lot.
The Radar captures and automatically tracks signals transmitted from a radiosonde attached to a balloon toobtain atmospheric conditions, calculate wind direction and wind velocity while the balloon is being uplifted. It inputs the received data, along with angle data and time signal into the data processing unit for real time dataprocessing.
Technical Parameter
METEOROLOGICAL SENSORS
Temperature White rod thermistor
Range       +50°C~ -90°C
Accuracy (standard deviation)
+50°C~ -80°C       0.2°C
-80°C~ -90°C       0.3°C
Resolution           0.1°C
Humidity     Carbon-film lamellar hygristor
Range       0%RH ~ 100%RH
Accuracy (standard deviation)
15%RH ~ 95%RH
T≥-25°C       5%RH
T< -25°C     10%RH
Resolution     1%RH
Pressure Silicon electric-bridge pressure sensor
Range   1060hPa ~ 5hPa
Accuracy (standard deviation)
1050hPa ~ 500hPa   2hPa
500hPa ~ 5hPa     1hPa
Resolution         0.1hPa
Measurement cycle for PTU sensors   1.2sec
DIMENSIONS AND WEIGHT
Dimensions(l×b×h)        190×90×245mm
Weight (battery-activated)    ≤400g
BATTERY
Water-activated battery     ±12.5V ~±13.5V
Operation time             ≥100min
TELEMETRY
Transmitter type               Analog
Carrier center frequency        (f0) 1676.5MHz±3MHz
Frequency range               1673.5MHz ~ 1679.5MHz
Output power                 ≥400mW
Modulation mode              AM
Quench frequency             800kHz±15kHz
Subcarrier frequency           32.7kHz±0.5kHz
Antenna gain                 ≥1dB
Receiving sensitivity           ≤20μW/m
Transmission rate           1200Baud
Transmission cycle             ≤1.5sec
Sounding range               200km
Sounding altitude              Up to 30km
CALIBRATION
Factory calibration            Stored in floppy disk
Ground check                Prior launch
