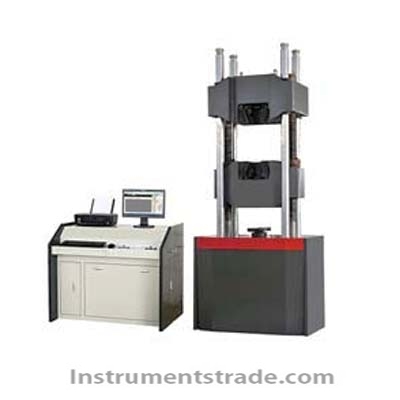

Brief introduction: This machine widely used in metal material tensile, compression, bending and shear test, can also be used for cement, concrete and other nonmetallic material compressive and bending test. Increase the special auxiliary equipment, fasteners, wire rope, artifacts can be mechanical performance test, the aerospace department, the engineering quality detection, universities and colleges, industrial and mining enterprises, scientific research units ideal high quality testing equipment. Experimental operation and data processing in accordance with GB/T228-2010 "metallic materials tensile test at room temperature, the standard of GB, ISO, and other test. Features: 1. The machine adopts zero clearance structure rigidity, directly by the test of the rise and fall of the piston to adjust space, convenient operation, high efficiency. 2. By the electric controller, servo valve, measuring force sensor, displacement sensor, with the computer of extensometer closed-loop servo control system. 3. Can accurately control the test process automatically, and automatic measurement test force, displacement and deformation parameters, etc. Technical indicators: Maximum force test: 1000 kn Test force measuring range: 1% - 100% Strength value resolution for: 1/300000 yards Test force precision value for: plus or minus 1% (control + / - 0.5%) Constant force, constant strain, constant displacement control range: 1% - 100% FS Piston displacement biggest move speed: 120 mm/min. Piston stroke: 250 mm Maximum tensile experiment space: 850 mm Maximum compression experiment space: 750 mm Circular specimen clamping diameter: 13 - phi phi 60 mm Flat specimen thickness clamping: 0 to 40 mm Shear specimen diameter: phi 10 Host appearance size: 1225 mm * 700 mm * 2665 mm Weight: 3000 kg
Brief introduction: This machine widely used in metal material tensile, compression, bending and shear test, can also be used for cement, concrete and other nonmetallic material compressive and bending test. Increase the special auxiliary equipment, fasteners, wire rope, artifacts can be mechanical performance test, the aerospace department, the engineering quality detection, universities and colleges, industrial and mining enterprises, scientific research units ideal high quality testing equipment. Experimental operation and data processing in accordance with GB/T228-2010 "metallic materials tensile test at room temperature, the standard of GB, ISO, and other test.
