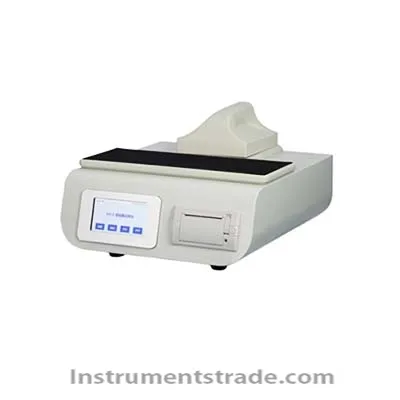

GH-E type aluminum plating thickness gauge Introduction
GH-E type aluminized thickness gauge is suitable for testing the resistance value, uniformity and thickness of various aluminized films, aluminized papers and other conductive coatings.
Executive standard: GB/T 15717 Features
Mechatronics
Mechatronics design, the mechanical part is used to place the sample and the measuring resistance, mainly composed of two parts: the operating table and the test fixture; the electrical part is mainly equipped with a micro control unit MCU, a full touch LCD screen and a printer, under the control of the microcomputer, Data acquisition and processing are saved, and the full touch LCD screen performs human-computer interaction (such as parameter measurement, measurement display, and motion control), and the experimental results can be printed by a WeChat printer.
Advanced circuit design effectively ensures the accuracy and stability of measurement data.
Technological advancement
The single-chip microcomputer performs information sensing, data processing, and motion control, and has the function of automatically reporting communication anomalies.
Microcomputer control, fast processing speed; precise control, safe and reliable; operation intelligence
High-precision contact-type measuring resistors with high test accuracy and high thickness accuracy.
According to actual needs, the number of tests can be set and the measurement results can be directly obtained.
True color full touch, real-time data display
The data acquisition system of the instrument is connected to the microcomputer. The test results are displayed on the color touch screen. The resistance values (maximum, minimum, average), thickness values (maximum, minimum, average) and uniformity are displayed in real time. Friendly human-machine interface for quick and intuitive viewing of test data and results
The LCD displays the measured thickness values (maximum, minimum, average) and resistance values (maximum, minimum, average) in real time.
Resistance correction
The instrument is fully calibrated by standard resistance values and the instrument is fully automated. The calibration operation is simple and convenient.
Printing system
The micro-printer is equipped with low noise and clear printing, which can quickly print the sheet resistance value (maximum, minimum, average), thickness value (maximum, minimum, average), and uniformity. Technical parameter
Thickness test circumference: 50-1200 (or Amy)
Square resistance test range: 0.3~10Ω
Test accuracy: ±0.5%Fs
Sample size: 300mm × 100mm
Sample effective size: 300mm × 100mm
Product size: 300mm × 300mm × 150mm
Power: 1000W
Power supply: AC 220V, 50Hz
Introduction
GH-E type aluminized thickness gauge is suitable for testing the resistance value, uniformity and thickness of various aluminized films, aluminized papers and other conductive coatings.
Executive standard: GB/T 15717
