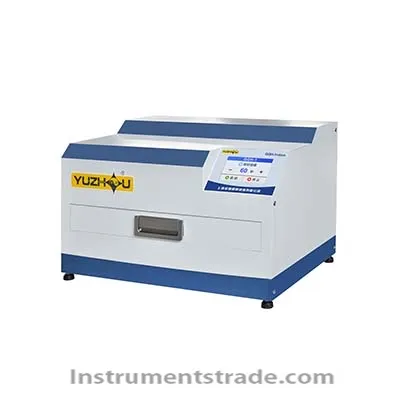

GGH-1 UV curing machine Introduction: Inlaying is a very important step in the preparation process of metallographic specimens, especially for small and difficult to handle samples, irregularly shaped samples that require edge protection, or samples that require automatic grinding and polishing. Inlaying of specimens is an essential process. GGH-1 is a sample cold embedding machine that uses UV light source to rapidly cure resin. Pour the resin into a specific cold inlay mold and place it in the working chamber. It only takes 60 seconds to obtain a completely transparent inlay sample. Quick sample preparation, no bubbles, can meet the needs of high-quality sample preparation. characteristic: 1. Fast sample preparation speed, transparent inlay completion time only takes 60 seconds 2. The workspace has a large capacity and can hold up to 20 samples (30mm diameter) simultaneously 3. Internal aluminum alloy structure, easy maintenance and upkeep 4. Dual light source ultraviolet LED, providing all-round and no dead angle illumination 5. Low shrinkage rate, freely adjustable irradiation time If the initial temperature is 22 ° C, the polymerization temperature is approximately 70 ° C 7. The hardness of the cured inlay is about 84-86 Shore D 8. 1L consumables can be used to make 55~65 30mm samples Technical parameters: Model: GGH-1 Work compartment size: 240 * 150 * 37mm Can simultaneously embed 20 samples with a diameter of 30mm UV light: dual light source UV 365+405nm Exposure time: 0-999 seconds Input power supply: single-phase 220V, 50Hz Dimensions: 270 × 230 × 320mm Net weight: 22kg
Introduction: Inlaying is a very important step in the preparation process of metallographic specimens, especially for small and difficult to handle samples, irregularly shaped samples that require edge protection, or samples that require automatic grinding and polishing. Inlaying of specimens is an essential process. GGH-1 is a sample cold embedding machine that uses UV light source to rapidly cure resin. Pour the resin into a specific cold inlay mold and place it in the working chamber. It only takes 60 seconds to obtain a completely transparent inlay sample. Quick sample preparation, no bubbles, can meet the needs of high-quality sample preparation.
