- Model NumberGC210
- Brand NameHNCCDQ
- Payment TermsT/T, paypal
Brief introduction:

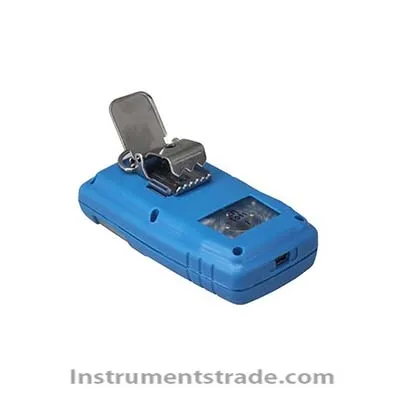

GC210 portable gas detector produced by our company is an industrial high sensitivity, wide range of gas leakage detection alarm device. Imported sensors, is controlled by a powerful embedded microcontroller processor, with large scale digital integrated circuit and the power consumption of the micro components, will signal into electrical signal, gas concentration in the air by the LCD digital display intuitively, when measured gas concentration in the environment reaches or exceeds the preset density, triple alarm instrument immediately issued sound, light, vibration, effectively guarantee the life safety of the staff are not violated, production equipment against losses, reliable performance.
The detector shell is made of high-strength engineering material and two-color material of composite elastic rubber, which has high strength, good hand feeling, waterproof, dustproof and explosion-proof. Small and light body: this interphone is a pocket design, small and light body, more convenient to carry. It's smaller than a normal phone.
Lithium ion rechargeable battery: 1200 mah, ultra-long standby for seven days, can work for three consecutive days; Macromolecule lithium battery, environmental protection, light weight, large capacity, long standby for 7 days, can work for 3 days continuously; Good heat dissipation, can avoid interference and radiation.
Features:
It has the function of starting up and self-checking
Large LCD display with backlight, Chinese operation interface
Two levels of sound, light, vibration triple alarm
2000 sets of data storage
Battery power real-time display, battery under voltage prompt function
Simple automatic calibration procedure
Sensor fault detection alarm
The frequency changes with the concentration of the alarm audio signal
After-sales service warranty for one year, free maintenance for life
Technical parameters:
Display: STN super large Chinese liquid crystal display
Sensor: replaceable temperature compensated electrochemical sensor (combustible gas is catalytic combustible)
Calibration: simple automatic zeroing and calibration procedure
Working environment: combustible gas temperature - 40-70 ° ℃;
Toxic gas temperature 30-50 ℃;
Humidity less than 95%RH without condensation
Sensitivity: 1ppm or 1%LEL
Alarm mode: two-stage sound, light and vibration three-stage alarm
Preheating time: 10 seconds
Audio indicator: 85dB higher buzzer frequency indicates higher concentration
Response time: T90,<30 seconds
Battery: dc3.6v 1200mAh rechargeable lithium ion battery
Detection gas: combustible gas, oxygen, toxic gas
Working time: combustible gas 8h;
Oxygen, toxic gas 100h
Protection level: IP65
Weight: 120g(including battery and alligator clip)
Size: 102 mm * 56 mm * 26 mm
