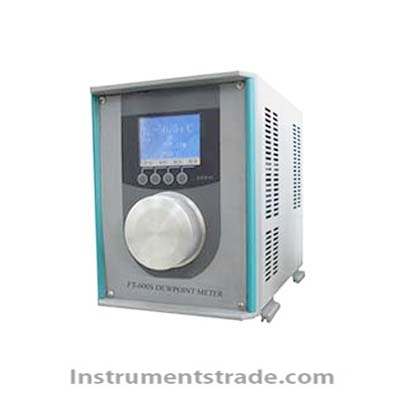

FT-600S-type precision dew point meter Introduction:
FT-600S-type precision dew point meter, is designed to detect gas humidity instrument. The use of semiconductor cooling elements to achieve "cold mirror" surface to produce low temperature zone, so that sample gas cooling over the mirror surface, and the formation of saturated vapor pressure, cold mirror condensation or frost on the surface. The process through the photoelectric technology processing, the mirror exposed state stability control at the best point. Built-in precision thermometer will show the sample gas dew point temperature to complete the gas humidity detection process.
FT-600S-type precision dew point meter series of products designed primarily for the power system business, for SF6, CO2, N2, H2 and other gas detection. In ensuring the basic functions, test accuracy does not decline under the premise of simplifying the operating procedures, as much as possible to improve the operability of the instrument. For example, un-common keys, such as forced heating and forced cooling, are eliminated, and the quick plug replaces the straight-through chuck, simplifying the gas connection procedure. Conducive to learning and mastery.
FT-600S-type precision dew point series of products using computer processing technology. On the one hand, the system automatically after boot self-test, such as the system failure, self-test results will play a guiding role in the maintenance of the instrument. On the other hand, the local monitoring and control system by the microprocessor processing, the test results of the stability and repeatability performance of this product is good, the accuracy of the instrument can reach a very high standard.
FT-600S Precision Dewpoint Meter is a new design that introduces advanced digital processing technology. In addition to detecting the sample dew point temperature, it can automatically convert parameters such as volume-to-humidity ratio PPm / v value and display it through the LCD Dew point temperature, PPm / v value, condensation curve, and dew status indication. Features:
Unique TD ℃, PPM large-screen curve shows simple operation All intelligent anti-vibration design Anti-pollution instrument No wet hysteresis Repeatability Good response speed High measurement accuracy Long-term stability Long-term maintenance. Technical Parameters:
Dew point temperature measurement range: (20 ℃) - 65 ~ 20 ℃
Maximum cooling temperature: (25 ℃) Δ 95 ℃
Dew point temperature test accuracy: DEW <± 0.3 ℃
Display sensitivity: ± 0.1 ℃
Sample gas pressure: 0.1 MPa / cm2
Sample gas flow: 0.4 ~ 1.0L / min
Repeatability: <0.2 ℃
Working environment temperature: -20 ~ +50 ℃
Display: 4?
Rated working voltage: 220VAC 50Hz
Rated power: 120W
Dimensions: (W) 460X (D) 350X (H) 130mm
Weight: 8.5Kg
Introduction:
FT-600S-type precision dew point meter, is designed to detect gas humidity instrument. The use of semiconductor cooling elements to achieve "cold mirror" surface to produce low temperature zone, so that sample gas cooling over the mirror surface, and the formation of saturated vapor pressure, cold mirror condensation or frost on the surface. The process through the photoelectric technology processing, the mirror exposed state stability control at the best point. Built-in precision thermometer will show the sample gas dew point temperature to complete the gas humidity detection process.
FT-600S-type precision dew point meter series of products designed primarily for the power system business, for SF6, CO2, N2, H2 and other gas detection. In ensuring the basic functions, test accuracy does not decline under the premise of simplifying the operating procedures, as much as possible to improve the operability of the instrument. For example, un-common keys, such as forced heating and forced cooling, are eliminated, and the quick plug replaces the straight-through chuck, simplifying the gas connection procedure. Conducive to learning and mastery.
FT-600S-type precision dew point series of products using computer processing technology. On the one hand, the system automatically after boot self-test, such as the system failure, self-test results will play a guiding role in the maintenance of the instrument. On the other hand, the local monitoring and control system by the microprocessor processing, the test results of the stability and repeatability performance of this product is good, the accuracy of the instrument can reach a very high standard.
FT-600S Precision Dewpoint Meter is a new design that introduces advanced digital processing technology. In addition to detecting the sample dew point temperature, it can automatically convert parameters such as volume-to-humidity ratio PPm / v value and display it through the LCD Dew point temperature, PPm / v value, condensation curve, and dew status indication.
