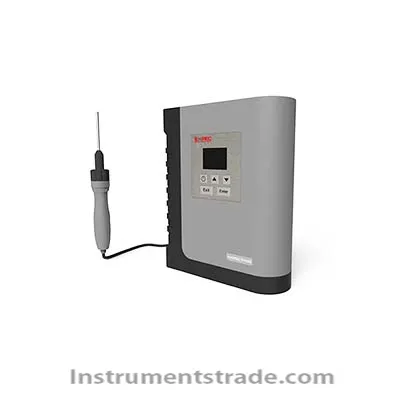

EXPEC 3100 Portable Volatile Organic Gas Analyzer Introduction
The EXPEC 3100 portable volatile organic gas analyzer analysis method meets the technical requirements for total hydrocarbon detection and leak detection. The FID detector is used for total hydrocarbon detection. The product is suitable for VOCs inspection and traceability, pollution source on-site emergency detection, and unorganized on-site emergency detection. Pipeline emissions leak detection in chemical companies.
The instrument is equipped with FID and PID dual detectors that respond to almost all VOCs and some common inorganic factors. The whole machine is small in size, light in weight, good in detection performance, simple in operation, and meets the requirements of customers for fast and accurate analysis on the inspection site.
EXPEC 3100I is a hand-operator designed for EXPEC 3100. It can be used for on-site inspection and analysis of VOCs, LDAR on-site documentation, point detection data recording and instrument control with the host analyzer, which can greatly improve the efficiency of VOCs on-site detection and traceability.
Feature
Machine explosion-proof design
The whole circuit of the analyzer adopts intrinsically safe explosion-proof design, the core FID detector module adopts explosion-proof design, and the FID detector and hand-held device adopt intrinsically safe explosion-proof design to meet the requirements of explosive dangerous gas places.
Strong on-site inspection capability
Optional FID and PID dual detectors with wide measuring range, response to almost all organic gases and some inorganic gases, response time less than 3.5 seconds, suitable for rapid troubleshooting and traceability of VOCs
Compact structure design, carefully selected lightweight components and composite materials, the weight of the mainframe is only 3.7Kg, the lightest on the market, easy to carry on the industrial site
A new generation of LDAR solutions
Suitable for networked applications, one-click upload cloud platform, easy to operate
Communicator scan code recognition calls picture point information, more efficient
Communicator and analyzer use wireless connection, more flexible than traditional instrument interface operation
Compatible documentation: Open communication protocol compatible with mainstream LDAR analyzer data analysis platform
User-friendly accessory design
Safe and fast charging and discharging hydrogen module, complete hydrogen charging within 30s, complete hydrogen discharge operation within 1min
Wireless transmission: high-reliability industrial wifi module for stable and fast data transmission between the handheld communicator and the analyzer
The newly designed ergonomic carrying system can greatly reduce the load and fatigue of the field personnel.
Technical Parameters
Detector: FID and PID detectors are optional
Range: FID 1.0~50,000ppm methane; PID 0.5~2,000ppm isobutylene
Detection limit: FID0.5ppm methane; PID 0.5~2,000ppm isobutylene
Repeatability: <2% for PID 500ppm methane; <1% for PID 100ppm isobutylene
Response time: FID access to 10,000ppm methane, the final value of 90% of the time is less than 3.5s; PID into 500ppm isobutylene, the final value of 90% of the time is less than 3.5s
Continuous working time: Hydrogen: It takes 10 seconds to fill 15.3MPa (2200psi) at 25°C, and can work continuously for more than 10 hours after filling. Battery: Rechargeable battery, can work continuously for more than 10h after being fully charged
Sampling: at the sampling probe inlet, typically 1L/min
Working temperature: -10~45°C
Explosion-proof type: Ex d ia IIC T4 Gb
Dimensions: 302*245*88mm
Weight: 3.7kg
