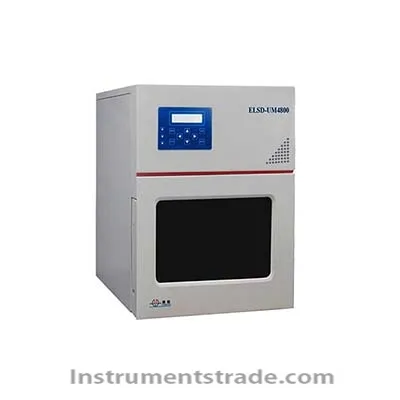

ELSD-UM4800 evaporative light- scattering detector for Amino acid detection

Product ID:FSjian003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberELSD-UM4800
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction
    Evaporative light-scattering detector has been widely applied in the carbohydrate, lipid, fatty acids, amino acids, drugs and polymer detection, especially the no violet absorption of active ingredients of traditional Chinese medicine and Chinese patent medicine.
    UM4800 evaporative light-scattering detector, it is our company's new economical evaporative light-scattering detector; Is continued UM3000 and UM5000 after another classic. The performance of the instrument has been further optimization, at the same time, also has the economical, high cost performance, etc.
    Technical indicators
    instrument type :Low-temperature evaporation type
    Evaporation area temperature range:room temperature to 130 ° C
    gas type :air or nitrogen
    Gas velocity range:1 ~ 4 L/min
    Baseline drift:< 1.0 mV/h (1 ml/min 10% methanol, 40 ° C evaporation temperature, gas flow rate : 3 l/min)
    Glucose (minimum detectable quality < 1.0 ng sample directly, 1 ml/min water, evaporation temperature of 40 ° C, gas flow rate of 3 l/min)
    Typical quantitative range of 0.2-30 mu g (glucose)
    Quantitative repeatability measurement (6) RSD6 2.0% or less
    Analog signal 0 ~ 1 v
    power supply    220 v, 50 hz
    Volume        460×330×460(mm)



  • Introduction
    Evaporative light-scattering detector has been widely applied in the carbohydrate, lipid, fatty acids, amino acids, drugs and polymer detection, especially the no violet absorption of active ingredients of traditional Chinese medicine and Chinese patent medicine.
    UM4800 evaporative light-scattering detector, it is our company's new economical evaporative light-scattering detector; Is continued UM3000 and UM5000 after another classic. The performance of the instrument has been further optimization, at the same time, also has the economical, high cost performance, etc.
