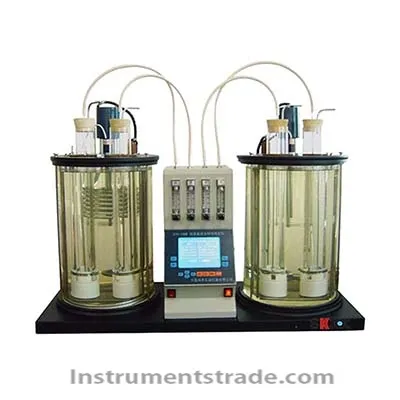

Brief introduction: Execution standard: GB/T 12579 oil foaming characteristics measurement. Scope of application: lubricating oil bubble characteristic tester is suitable for the determination of lubricating oil, gear oil, hydraulic oil and other oil bubble tendentiousness and foam stability. Features: 1. The oil bubble characteristic tester for split type structure. 2. The new type of single chip microcomputer as control core, combined with PWM control technology, greatly improve the temperature control precision and computing speed. 3. Using a dedicated clock chip, make more accurate timing. 4. In addition to the user to set the values of the parameters are saved memory function, allows the user to set the parameters of worth to save, after shutdown, all parameters are not lost. 5. The upper part of the master control system for four road air flow meter, respectively for adjusting and measuring the air flow. 6. Can control the temperature of the two water bath at the same time, make it meet the requirements of operation method respectively the 24 ℃ and 93.5 ℃. 7. The built-in four separate pump, two measuring cylinder each bath can load at the same time. 8. The operation of the four measuring cylinder of the two water bath can be simultaneously. Technical parameters: 1, the temperature control precision: plus or minus 0.2 ℃ 2, the timing precision: plus or minus 1 s 3, air traffic control precision, plus or minus 2 ml/min 4, the display mode: liquid crystal display (LCD) 5, sample loading hole: 4 6, the maximum power: 2700 w or less 7, the power supply requirements: AC220V plus or minus 10%, 50 hz
Brief introduction: Execution standard: GB/T 12579 oil foaming characteristics measurement. Scope of application: lubricating oil bubble characteristic tester is suitable for the determination of lubricating oil, gear oil, hydraulic oil and other oil bubble tendentiousness and foam stability.
