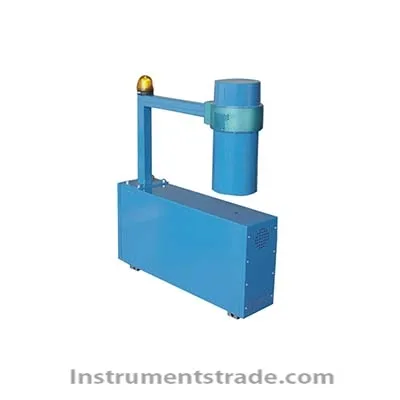

DM6100 type  X-ray thickness gauge for Steel strip, copper strip, aluminum strip

Product ID:WCHzx003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDM6100
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    DM6100 type X-ray thickness gauge can be used in all walks of life in all kinds of plastic, rubber, wood, cardboard, such as sheet metal thickness measurement, all areas of production line is mainly used for metal rolling industry products, such as steel, copper, aluminum, aluminum foil and so on carries on the dynamic state of thickness measurement, can the thickness of the output signal to the AGC system, in order to realize the thickness of the closed-loop control. Have no contact with the object to be tested, continuous, rapid and accurate measurement, etc.
    Features:
    1. Do not contain isotope source, no "three wastes" pollution, from the user's trouble and expense.
    2. Continuous non-contact measurement, connected to the AGC system can realize the thickness of the closed loop control.
    3. The big screen Chinese language display, cold cathode backlit LCD, the handwriting clear and bright.
    4 high integrated degree, environment adaptable, strong anti-jamming capability, high reliability.
    5. High measuring accuracy, response speed and good stability.
    6. Easy to use and quick operation, maintenance, debugging workload is small.
    7. With the prompt diagnosis, wrong operation, automatic calibration and compensation function.
    8. Excellent shielding protection and ensuring the safety of radiation protection requirements.
    Technical indicators:
    Measuring range: 0.1 mm to 4.0 mm (in steel), 0.01 mm to 10.0 mm (aluminum).
    Steel belt running speed: 0 ~ 27 m/s.
    Distinguish precision: 0.001 mm.
    Accuracy of measurement: plus or minus 0.2%.
    Response time: 100 ms (5% response to changes in the thickness of 5%).
    Sampling period: 200 ms and 400 ms and 600 ms and 800 ms can choose.
    Measurement noise: 0.12%.
    Repeatability: 0.2%.
    Drift: long-term drift < ± 0.24% every 8 hours, short-term drift < ± 0.2% per hour.
    The machine power: 250 w or less.
    The size and weight: 470 mm * 365 mm * 160 mm, and 15 kg.
