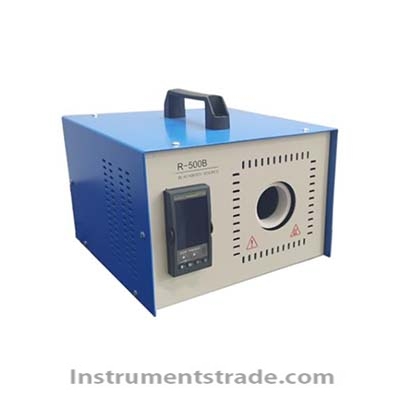

CW-500B Blackbody Radiation Source Introduction: Blackbody radiation source is a radiation standard, mainly used for calibration of infrared thermometers, infrared thermal imagers, calibration of various infrared detector responsivities, calibration of infrared optical systems, measurement of emissivity of various materials, etc. Blackbody, as a standard infrared radiation source, is widely used in the calibration of infrared optical systems, measurement of emissivity of various materials, calibration of infrared detectors and infrared radiation instruments. The modified blackbody adopts an integrated structure of furnace body and temperature controller, with a beautiful appearance design. The heating element is isolated from the shell, and even if the blackbody works at 550 ℃, the shell is not affected. The rear of the box is ventilated with a low-noise fan. In order to extend the service life of the blackbody, software voltage limiting method is adopted without the need for high-power transformers. The CW-500B blackbody radiation source is mainly used for calibrating non-contact radiation temperature measuring instruments such as infrared radiation thermometers and infrared thermal imagers. characteristic: 1. The diameter of the cavity is large and can adapt to most D: S radiation thermometers; 2. Temperature range, ambient temperature+10 ° C to 500 ° C; 3. Choose Eurofins 0.1 level temperature control instruments with high temperature control accuracy; 4. The temperature control instrument has multi-point independent temperature correction function; 5. The target surface adopts a corrugated structure, which can effectively improve the emissivity of blackbody radiation; 6. Target surface treatment technology makes the temperature of the target surface more uniform, and the equipment will not be damaged or fall off even after long-term use and frequent temperature rise and fall; 7. This product meets the requirements of working radiation thermometers and can meet the calibration work of daily infrared radiation thermometers and infrared thermal imagers for measuring units. 8. Lightweight and easy to carry. Technical parameters: Temperature range: ambient temperature+10 ℃~500 ℃ Mouth diameter: Φ50mm Emissivity: 0.995 Resolution: 0.1 ℃ Temperature control stability: not greater than (the greater of 0.1 ℃ and 0.1% t)/10min Uniformity: not greater than (the greater of 0.15 ℃ and 0.15% t) Accuracy: ± 1.0 ° C Depth of cavity: 130mm Heating time: 60 minutes from room temperature to 500 ° C Power Supply: 220VAC 50Hz ； About 500W Dimensions: Width 260mm, Depth 260mm, Height 200mm Net weight: approximately 6.0Kg
Introduction: Blackbody radiation source is a radiation standard, mainly used for calibration of infrared thermometers, infrared thermal imagers, calibration of various infrared detector responsivities, calibration of infrared optical systems, measurement of emissivity of various materials, etc. Blackbody, as a standard infrared radiation source, is widely used in the calibration of infrared optical systems, measurement of emissivity of various materials, calibration of infrared detectors and infrared radiation instruments. The modified blackbody adopts an integrated structure of furnace body and temperature controller, with a beautiful appearance design. The heating element is isolated from the shell, and even if the blackbody works at 550 ℃, the shell is not affected. The rear of the box is ventilated with a low-noise fan. In order to extend the service life of the blackbody, software voltage limiting method is adopted without the need for high-power transformers. The CW-500B blackbody radiation source is mainly used for calibrating non-contact radiation temperature measuring instruments such as infrared radiation thermometers and infrared thermal imagers.
