Introduction:

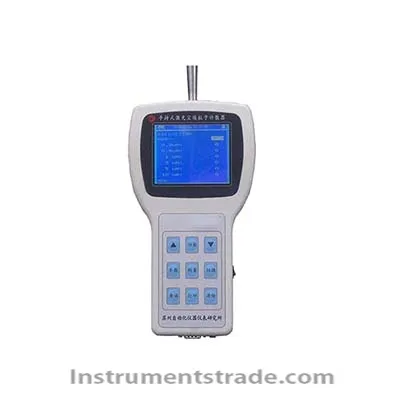

Professional research and development, production of CSJ-3188 hand-held laser dust particle counter is to detect the number of dust particles in the air and clean the plant cleanliness level of the special testing equipment. The instrument can be connected with the PC computer data acquisition system, the test data can be analyzed and processed by the computer and can be saved as Excel file. Machine functions using microcomputer control processing, test results can be printed directly. With more features, high accuracy, speed, easy to carry and easy to operate.
The instrument can detect cleanliness: 10, 100, 1000, 10000, 100000, 300000, and the instrument can set the six levels of automatic counting overrun alarm. Data can be stored 1360 groups of measurement results. Computer communication port, bilingual interface, temperature and humidity function, metric conversion. Can automatically 95% confidence level of the UCL to make a clean level of judgment, real-time clock, year, month, day printing capabilities. Is the detection of clean plants, pharmaceutical companies, supervision and management departments to implement the "GMP" specification of choice products.
This product is widely used in the electronics industry, pharmaceutical industry, food and beverage, bioengineering, fine chemicals, precision machinery, aerospace industry, HVAC, environmental protection, medical equipment, clean hospital operating room, universities, research institutes, etc. field. Technical Parameters:
Model: CSJ-3188
Light source: semiconductor laser life> 10 years
Sampling flow: 2.83L / min (0.1ft3)
Display: 320 × 240 high-resolution LCD display (LCD), Chinese and English interface options
Diameter channel: 0.3,0.5,1,3,5,10 (μm), sixth gear particle size at the same time
Detection range: 10 to 300,000
Alarm function: The instrument can be set to 10, 100, 1000, 10000, 100000, 300000 six levels of over-limit alarm, the battery voltage alarm is too low
Sampling period: 1 ~ 10 (min) optional, self-cleaning time ≤ 10min
Data storage: 1360 sample records, including date, time, count, sample volume, temperature and humidity, average, UCL, cleanliness
Calculation function: calculated by 95% confidence UCL
Counting mode: concentration, manual / automatic
Count Report: In line with JJF1190-2008, ISO14644-1, GB50073-2001, GMP, FS-209E
Unit conversion: The unit can be converted into m3, ft3
Power: AC adapter, AC: 100V ~ 245V, 50 / 60Hz to DC: 8.4V, 500mA
Test methods: single, repeated, continuous, standard
Measurement position: Sampling points (A): 2 to 9 points set, the number of samples (L): 2 to 9 times set. 0-999
Communication Interface: USB, 9600 baud rate
Working hours: 6 hours (remaining charge indication)
Operating Environment: Temperature: 10 ° C to 40 ° C (50 ° F to 104 ° F) Humidity: 20% to 90% RH, non-condensing
Overall dimensions: 230 × 130 × 45 (mm)
Weight: 0.6kg
Standard configuration: suitcases, chargers, such as power sampling head, sampling tube, zero filter, USB cable, computer connection software CD
Options: external printer, temperature and humidity sensors, special triangular sample rack
Introduction:
Professional research and development, production of CSJ-3188 hand-held laser dust particle counter is to detect the number of dust particles in the air and clean the plant cleanliness level of the special testing equipment. The instrument can be connected with the PC computer data acquisition system, the test data can be analyzed and processed by the computer and can be saved as Excel file. Machine functions using microcomputer control processing, test results can be printed directly. With more features, high accuracy, speed, easy to carry and easy to operate.
The instrument can detect cleanliness: 10, 100, 1000, 10000, 100000, 300000, and the instrument can set the six levels of automatic counting overrun alarm. Data can be stored 1360 groups of measurement results. Computer communication port, bilingual interface, temperature and humidity function, metric conversion. Can automatically 95% confidence level of the UCL to make a clean level of judgment, real-time clock, year, month, day printing capabilities. Is the detection of clean plants, pharmaceutical companies, supervision and management departments to implement the "GMP" specification of choice products.
This product is widely used in the electronics industry, pharmaceutical industry, food and beverage, bioengineering, fine chemicals, precision machinery, aerospace industry, HVAC, environmental protection, medical equipment, clean hospital operating room, universities, research institutes, etc. field.
