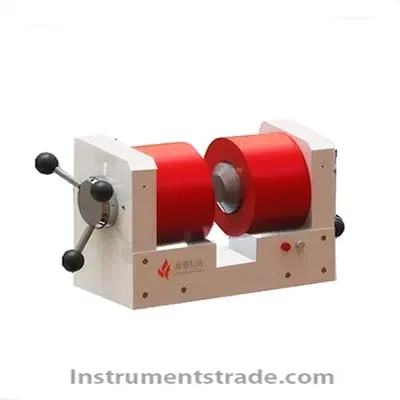

CR series standard electromagnet

Product ID：CLQTdcxjly029

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCR series

Brand NameBJCHAORUIRENDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

CR series standard electromagnet
Introduction:
An electromagnet is a device that generates et carrying A coil, like a magnet, has magnetism and is also called an electromagnet. Electromagnets are commonly used instruments in physics and materials research, such as magnetic materials, spintronics devices, magnetic sensors, etc.
The electromagnets produced by Chaorui Renda are made of high-quality high-purity electrical iron, which has the advantages of high magnetic permeability and low remanence. The gap between magnets is continuously adjustable, and the pole heads can be replaced. The reasonable design and surface treatment process make the appearance of magnets beautiful and easy to operate, suitable for Hall, magnetic resistance VSM、 Various application scenarios such as magneto-optical, magnetic field annealing, and magnetic field probe stations can also be customized according to user needs.
Technical parameters:

model	CR3	CR4	CR5	CR7
Pole diameter (mm)	76 (three inches)	102 (four inches)	127 (five inches)	178 (seven inches)
Polar diameter (mm)	40	50	60	76
Dimensions (LW D mm3)	330140210	390180335	530200420	650280520
Weight (Kg)	42	128	270	550
Magnetic field strength (T) @ 10mm	1.2	1.5	2.4	2.6
Air gap adjustment range (mm)	0-65 continuously adjustable	0-100 continuously adjustable	0-130 continuously adjustable	0-170 continuously adjustable
Cooling method	natural cooling	natural cooling	water-cooling	water-cooling
Do you accept customization	Customizable design	Customizable design	Customizable design	Customizable design
