Summary:

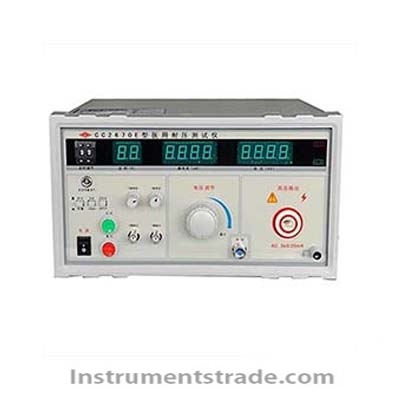

CC2670E medical hipot tester in order to ensure the safety of medical electrical equipment, according to the national GBGB9706.1 IEC601 (international standard - 1) the medical electrical equipment part 1: general requirements for safety of medical electrical equipment electrolyte strength (both voltage resistance strength) the requirements of the development and production, is the medical electrical equipment manufacturers, maintenance department, the use of units and the quality inspection department, technical supervision department shall not do less pressure test equipment. Main technical indicators:
Voltage measurement range AC: 0-- -5kv
Current test range AC: 0.3-2ma; 2 -- 20mA + / - (5% 3 words)
Preset range of alarm value AC: 0.3-2ma; 2 -- 20mA + / - (5% 3 words) (continuous setting)
Time test range: 1-99 seconds (continuous setting) + 5%
Transformer capacity :500VA
Output waveform :50Hz, sine wave
Ambient temperature working conditions: 0-40 ℃, relative humidity: 75%, or less atmospheric pressure: 101.25 kPa
Volume (mm) 315 x 165 x 250
15 kg weight:
Power supply: 220V 50Hz + / - 2%
