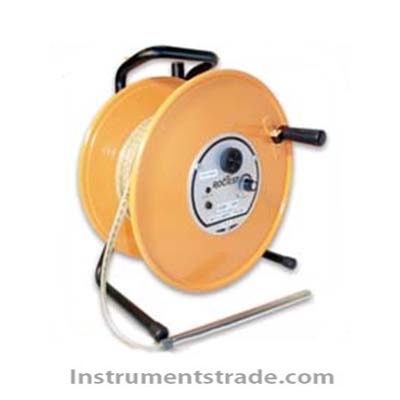

CPR type electric water level gauge Introduction: The CPR type electric water level gauge is used to measure the depth of water level in boreholes, measuring pipes, or water wells. It can quickly and accurately obtain data on the depth of water level. The CPR type electric water level gauge is designed to be lightweight and compact, including a spool, a tape measure with a scale, a control panel, and a probe. During testing, when the probe is in full contact with the water surface, it will trigger the sound and light alarm on the control panel, emitting light and sound indication signals. At this point, the water level depth data can be recorded through the scale on the tape measure. Technical parameters: Instrument type: Portable monitoring instrument Standard range: 30m，50m，100m，150m Resolution: ± 1mm Repeatability:+ 3 mm Scale tape measure: Material: PCST type tape measure, which is a stainless steel tape measure coated with epoxy resin and wrapped with a transparent polyethylene coating formed by extrusion. Width: 11mm Probe: Made of stainless steel, nylon, and brass Diameter: 11mm; Length: 175mm; Weight: 110g Roll: Small: 318x263x200mm, cable capacity 100m, Large: 355x300x190mm, cable capacity 150m Power supply: 9V alkaline battery Battery life: 8 hours of continuous use Indication signal: red indicator light and buzzer
Introduction: The CPR type electric water level gauge is used to measure the depth of water level in boreholes, measuring pipes, or water wells. It can quickly and accurately obtain data on the depth of water level. The CPR type electric water level gauge is designed to be lightweight and compact, including a spool, a tape measure with a scale, a control panel, and a probe. During testing, when the probe is in full contact with the water surface, it will trigger the sound and light alarm on the control panel, emitting light and sound indication signals. At this point, the water level depth data can be recorded through the scale on the tape measure.
