Profile:

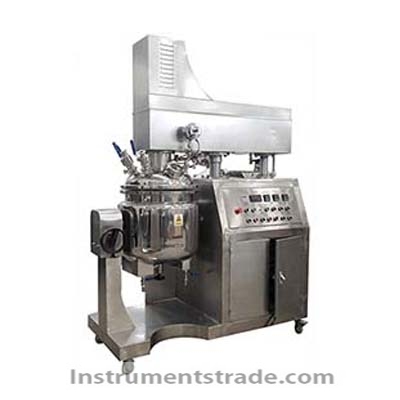

Vacuum mixing pot is the production of various kinds of ointment, cream, cosmetics, chemical, food, and other necessary equipment EC products; this machine has simple structure, convenient operation, novel appearance and reliable performance. It is biological, pharmaceutical, cosmetic, chemical, food, oil and other customers the best choice for mass production. Our company produces the vacuum stirring pan, for the pharmaceutical, chemical, cosmetics, food, beverage and other industries design; mixing modes, customers can choose one, can also according to the customer request making stirring blades in various ways. Working principle:
The machine through homogeneous impeller and Teflon scraper always stir the pot body, sweep the wall sticky material, make scraping material produced in new, after mixing blade shearing, compression, folding, the mixed and dirty to the bottom of the homogenizer, the material in the impact between the rotor and the the stator homogenizer rotating in high speed generated by the strong turbulence, cut, and a series of process, was quickly broken into particles of 200 m ~ 2 m, the emulsification pot in the vacuum state, the material in the mixing process of the bubble was promptly removed.
Characteristic:
1 adopts PLC touch screen control, lifting the lid, dumping of materials, can also be bottom discharge, convenient cleaning.
2 through the electric heating tube to heat the heating medium in the sandwich layer to realize the heating of the material, the heating temperature can be set freely, and it can be controlled automatically
3 access to the cooling liquid in the interlayer can cool the material, the operation is simple and convenient, and the insulation layer is arranged outside the interlayer
Homogeneous system and mixing system can be used separately, but also can be used at the same time
4 material particles, emulsion, mixing, dispersing and mix thoroughly, can be completed within a short time.
5 contact with the material part of the use of high quality stainless steel (commonly used 304, medical 316L), the internal surface mirror polished, vacuum mixing device clean and sanitary, in line with the GMP standard health standards, is the customer's ideal cream production equipment Technical index:
Main pot dissolved product: 50L
Work solution: 50L
Ultimate vacuum: -0.09MPa
Mainframe dimensions: 800 x 800 x 1700mm
This unit material: inner wall, jacket, outer layer are 304 high quality stainless steel
