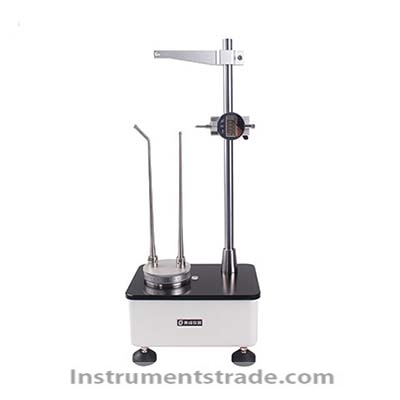

CHY-A bottle wall thickness gauge Introduction: The CHY-A wall thickness gauge is suitable for measuring the thickness of glass bottle bottoms and walls in industries such as pharmaceuticals, food, and pharmaceuticals. It can meet the measurement of wall thickness and bottom thickness of products such as infusion bottles, beer bottles, oral liquid bottles, ampoules, penicillin bottles, etc. characteristic: The auxiliary measuring disc can rotate 360 ° and comes with scale markings to ensure accurate measurement and return to its original position Electronic digital display measurement results for easy recording Adopting capacitive gate sensing technology, convenient and practical Satisfy two measurement methods for glass bottle bottom thickness and wall thickness Testing standards: This instrument complies with multiple national standards: GB/T 12415-90、YBB00332002-2015、YBB00332003-2015、YBB00032004-2015 Technical parameters: Instrument range: 0 ~ 12.7 mm / 0.5″ Division value: 0.001 mm / 0.00005″ Sample diameter: 5 ~ 100 mm Sample height: ≤250 mm Dimensions: 300 mm (L) × 170mm (W) × 460mm (H) Net weight: 8 kg
Introduction: The CHY-A wall thickness gauge is suitable for measuring the thickness of glass bottle bottoms and walls in industries such as pharmaceuticals, food, and pharmaceuticals. It can meet the measurement of wall thickness and bottom thickness of products such as infusion bottles, beer bottles, oral liquid bottles, ampoules, penicillin bottles, etc.
