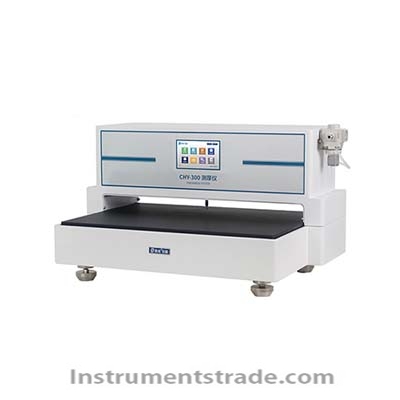

CHY-300 thickness gauge Introduction: The CHY-300 thickness gauge adopts a mechanical contact measurement method, which strictly meets the standard requirements and effectively ensures the standardization and accuracy of the testing. Professional application for precise thickness measurement of various materials such as plastic films, thin sheets, diaphragms, paper, foil, silicon wafers, etc. within the range of measurement. characteristic: 1. Strictly follow the standard designed contact area and measurement pressure, while supporting various non-standard customizations During the testing process, the measuring head automatically rises and falls, effectively avoiding system errors caused by human factors 3. Supports both automatic and manual measurement modes, allowing users to freely choose 4. Optional system automatic injection, with parameters such as injection step distance, measurement points, and injection speed that can be set by the user themselves 5. Real time display of analysis data such as maximum, minimum, average, and standard deviation of measurement results to facilitate user judgment 6. Configure standard measuring blocks for system calibration to ensure testing accuracy and data consistency 7. The system supports many practical functions such as real-time data display, automatic statistics, printing, etc., making it convenient and fast to obtain test results 8. 5-inch touch screen control, convenient for users to conduct experimental operations and view data 9. Standard USB interface for easy external connection and data exchange between the system and the computer Technical parameters: Test range: 0-2 mm (conventional) 0-5 mm; 10 mm (optional) resolving power: 0.1 μm Measure pressure: 0.5 N ~ 1.0 N Measurement diameter: Φ 3 mm~Φ 10 mm (optional) Note: Others can be customized Platform area: 520 mm × 390 mm (customizable) Automatic injection: 0.1 ~ 99.9 mm/s Power Supply: AC 220 V 50 Hz Dimensions: 620 mm (L) × 415 mm (W) × 350 mm (H) Net weight: 40 kg
Introduction: The CHY-300 thickness gauge adopts a mechanical contact measurement method, which strictly meets the standard requirements and effectively ensures the standardization and accuracy of the testing. Professional application for precise thickness measurement of various materials such as plastic films, thin sheets, diaphragms, paper, foil, silicon wafers, etc. within the range of measurement.
