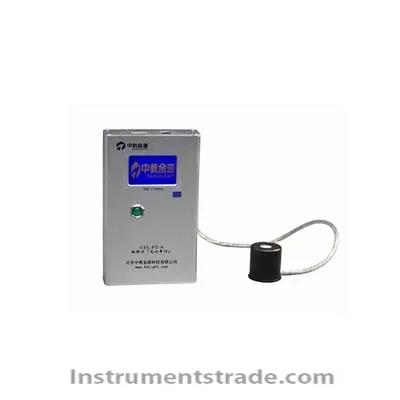

CEL-FZ-A radiation meter Introduction: CEL-FZ-A radiation meter (optical power meter) is a portable automatic range test instrument. The professional photoelectric detector is adopted, and the high-precision low-power digital chip is selected. The detector has undergone strict spectral and angular characteristics correction, stable performance and strong applicability, and temperature correction is adopted to improve accuracy. It can be used to measure the irradiance of sunlight (300-1100nm), and also can be used to test the solar simulator, analog fluorescent xenon lamp, LED light source, xenon lamp, halogen lamp, monochromatic light, etc. characteristic: 1. Spectral and angular characteristics are strictly corrected 2. Digital LCD display results, including temperature correction 3. One-button switch, automatic range switching 4. Digital output interface (rechargeable) 5. Lithium battery is used for power supply 6. Measurement range 0-300mW/cm 2300-1100nm Technical parameters: Power meter: CEL-FZ-A radiation meter (optical power meter) Wavelength range: 300-1100nm; UV, visible, infrared, continuous measurement or segmented measurement Power range: 0-300.0mW/cm2; (Relative to NIM standard) Temperature correction range: 15-35 ℃; 4% cosine correction; Resolution: 0.1 μ w; Measurement error:<5% Normal use conditions: normal temperature 25 ℃, normal pressure; Temperature (0~40) ℃; Humidity ＜ 85% RH Response time:<0.4 seconds Portable lithium battery: charging power supply: 220V, 50Hz
Introduction: CEL-FZ-A radiation meter (optical power meter) is a portable automatic range test instrument. The professional photoelectric detector is adopted, and the high-precision low-power digital chip is selected. The detector has undergone strict spectral and angular characteristics correction, stable performance and strong applicability, and temperature correction is adopted to improve accuracy. It can be used to measure the irradiance of sunlight (300-1100nm), and also can be used to test the solar simulator, analog fluorescent xenon lamp, LED light source, xenon lamp, halogen lamp, monochromatic light, etc.
