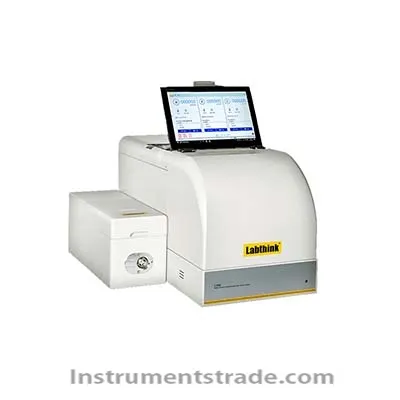

C390H Water Vapor Permeability Testing System Introduction: This product is based on the testing principle of infrared moisture analysis sensors and is designed and manufactured in accordance with ASTM F1249 and ISO 15106-2 standards. It provides a wide range and high efficiency water vapor transmittance detection test for medium to high water vapor barrier materials. Suitable for testing the water vapor permeability of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical devices, daily chemistry, photovoltaic electronics, etc. characteristic: 1. Patented new infrared moisture analysis sensor with higher sensitivity; Patented test manifold with advanced fluid mechanics and thermodynamics design; Space three-dimensional constant temperature technology; Temperature and humidity sensors that independently monitor the testing status of each cavity; 2. Simultaneously test three identical samples to meet the standard requirements of parallel testing; Support testing of three different samples under the same conditions; 3. Automatic temperature, humidity, and flow control; 4. 12 inch touch tablet operation equipped with Windows 10 system; Rapid automatic testing; DataShieldTM Data Shield System for Automatic Data Management Technical parameters: Test chamber: 3 Sample size: 108mm × 108mm Sample thickness: ≤ 3mm Standard test area: 50cm2 Carrier gas specification: 99.999% high-purity nitrogen (gas source provided by the user) Air source pressure: ≥ 0.28MPa/40.6psi Interface size: 1/8-inch metal pipe
Introduction: This product is based on the testing principle of infrared moisture analysis sensors and is designed and manufactured in accordance with ASTM F1249 and ISO 15106-2 standards. It provides a wide range and high efficiency water vapor transmittance detection test for medium to high water vapor barrier materials. Suitable for testing the water vapor permeability of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical devices, daily chemistry, photovoltaic electronics, etc.
