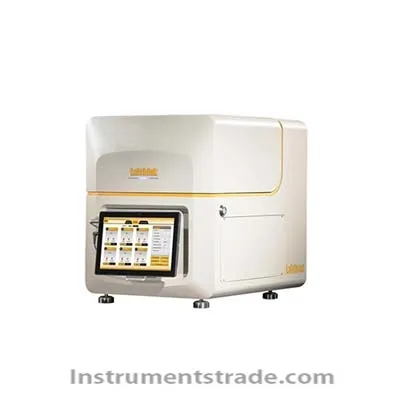

C306H packaging material moisture permeability meter Introduction: The C306H packaging material moisture permeability tester is based on the testing principle of infrared moisture sensors and is designed and manufactured according to standards such as ASTM F1249 and ISO 15106-2. It provides high-precision and high-efficiency water vapor permeability testing for high and medium gas barrier materials. Suitable for testing the water vapor permeability of thin films, sheets, and related materials in the fields of food, medicine, medical devices, daily chemistry, photovoltaics, electronics, etc. characteristic: 1. Equipped with Labthink patented technology, the infrared moisture sensor can achieve lower testing limits. 2. Ultra long service life, non consumable. 3. It has overrun alarm and automatic protection function. 4. The brand new rainbow bridge test chamber adopts 360 ° airflow circulation constant temperature technology for better temperature stability. 5. Test the high-precision humidity sensor inside the chamber, monitor and record humidity changes in real time. During the testing process, achieve automated control of flow rate, temperature, and relative humidity, with higher accuracy. 7. Efficient six chamber design, with six independent sets of 50cm2 standard area test chambers, which is three times the number of test chambers used in traditional moisture permeability detection instruments. 8. Support simultaneous testing of 6 samples under the same conditions, with independent data. 9. Within the same testing cycle, the number of completed samples increased from 2 to 6. 10. Automatically clamp the sample, saving time and effort, with consistent clamping force and better sealing. 11. Using a 12 inch touch tablet with Windows system for more convenient operation. 12. Automatic mode, input test temperature and humidity, one click start, fully automatic testing. 13. The intelligent compartment cover automatically opens and closes, with sound and light reminders. 14. The high-end industrial computer unique to Labthink is embedded to eliminate system failures caused by computer virus, and ensure operation reliability and data Storage security. Technical parameters: Test range: 0.02-40g/(m2 • day) (standard area 50cm2); 0.2~400g/(m2 • day) (MASK area 5cm2) (optional); 1~2000g/(m2 • day) (MASK area 1cm2) (optional) Resolution: 0.0001g/(m2 • day) Repeatability: 0.02 or 2%, whichever is greater Temperature range: 15-50 ℃; 5-60 ℃ (optional) Temperature fluctuation: ± 0.15 ℃ Humidity range: 100%, 5-90% ± 2% RH (within the standard temperature range) Test chamber: 6 sets Sample size: 4.4 "x 4.4" (11.2cm × 11.2cm） Sample thickness: ≤ 120 Mil (3mm) Standard test area: 50cm2 Carrier gas specification: 99.999% high-purity nitrogen (gas source provided) Air source pressure: ≥ 40.6 PSI/280 kPa Interface size: 1/8 "metal pipe Boundary dimension: 600mm × 490mm × 660mm Power supply: 120VAC ± 10% 60Hz/220VAC ± 10% 50Hz (either option) Net weight: 220Lbs (100kg)
Introduction: The C306H packaging material moisture permeability tester is based on the testing principle of infrared moisture sensors and is designed and manufactured according to standards such as ASTM F1249 and ISO 15106-2. It provides high-precision and high-efficiency water vapor permeability testing for high and medium gas barrier materials. Suitable for testing the water vapor permeability of thin films, sheets, and related materials in the fields of food, medicine, medical devices, daily chemistry, photovoltaics, electronics, etc.
