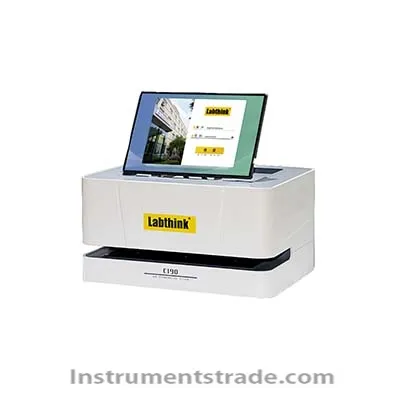

C190H permeability tester Introduction: The C190H permeability tester adopts the principle of volumetric testing and is specialized in testing the gas permeability of battery separators, breathable membranes, and related polymer materials. It is also suitable for testing the gas permeability of cigarette paper and various types of paper. characteristic: 1. Fully automatic high-precision volume measurement method 2. Flexible and efficient three chamber design 3. Automatic sample clamping is safe and labor-saving 4. Intelligent control, convenient and reliable Technical parameters: 3 sets of test chambers Sample size ≥ 2 "x 2" (6cm × 6cm） Sample thickness ≤ 120 Mil (3mm) Test area 1 "(6.4cm2) Gas specification dry air (gas source provided) Air supply pressure 87PSI/600kPa Interface size Φ 6mm polyurethane pipe External dimensions 23.6 "H x 19.6" W x 27.5 "D (25cm × 44cm × 35cm) Power supply 120VAC ± 10% 60Hz/220VAC ± 10% 50Hz (either option) Net weight 40Lbs (18kg)
Introduction: The C190H permeability tester adopts the principle of volumetric testing and is specialized in testing the gas permeability of battery separators, breathable membranes, and related polymer materials. It is also suitable for testing the gas permeability of cigarette paper and various types of paper.
