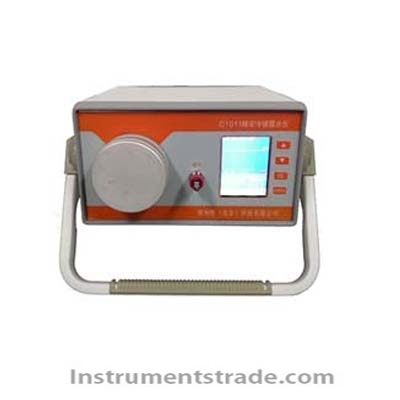

C1011 precision cold mirror dew point meter Introduction
C1011 precision cold mirror dew point meter is a precision dew point meter designed and manufactured using the principle of cold mirror. The C1011 precision cold mirror dew point meter is suitable for measuring the humidity of SF6, N2, air and other gases. The cold mirror method measures the actual dew point, with high accuracy and fast response. It is an ideal instrument for dew point testing in petrochemical, electric power, commodity inspection, and scientific research departments. Features
Adopting four-stage refrigeration technology, the refrigeration capacity is strong, which can reach -60 ℃.
Using digital fuzzy control technology, the equilibrium stabilization time is short, and the measurement only takes 3 to 5 minutes.
The LCD screen can be used to display parameters such as dew point temperature, μl / L value, equilibrium process curve, and gas flow rate, which is convenient to operate.
With intelligent judgment and fault self-diagnosis reminding functions, such as inappropriate gas flow, low light energy, and measurement results that do not reach the equilibrium alarm.
Peltier cooling, air cooling, small size.
Corrosion-resistant pipes can be used to measure corrosive gases. Technical Parameters
Measurement range: 0 ° C ～ -60 ° C (ambient temperature 10 ℃)
Resolution: 0.01 ℃
Accuracy: 0.2 ℃
Equilibration time: 3 to 5 minutes
Gas flow: 15 ～ 60l / h
Gas pressure: 10mbar ～ 10bar (1kPa ～ 1MPa)
Display: LCD displaPower supply voltage: AC 220V ± 10% 50Hz ± 10%
Power: 70W
Ambient temperature: -20 ℃ ～ + 50 ℃
Ambient humidity: 90% relative humidity, non-condensing
Dimensions: 320mm × 300mm × 190mm
Weight: 6.6kg
Introduction
C1011 precision cold mirror dew point meter is a precision dew point meter designed and manufactured using the principle of cold mirror. The C1011 precision cold mirror dew point meter is suitable for measuring the humidity of SF6, N2, air and other gases. The cold mirror method measures the actual dew point, with high accuracy and fast response. It is an ideal instrument for dew point testing in petrochemical, electric power, commodity inspection, and scientific research departments.
