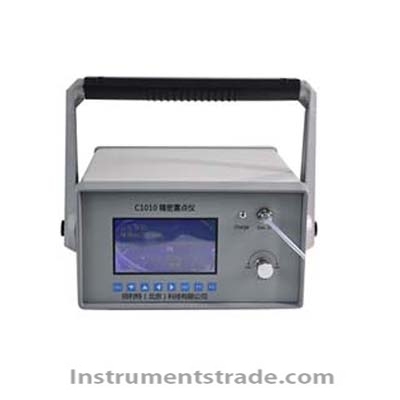

C1010 precision dew point meter Introduction
The C1010 precision dew point meter is mainly used for the detection of dry gas and micro-water. The measured gases are: H2, SF6, N2, O2, Ar2, CO2, compressed air and other gases. The C1010 precision dew point meter is suitable for power, chemical, Aviation, metallurgy, food and other industries. Features
The probe is protected against oil and gas contamination.
The automatic calibration procedure makes the instrument have long-term stability and overcomes the disadvantages of field measurement.
True color touch screen display, Chinese and English bilingual interface.
Simultaneously display dew point ºC (Td), PPm value, relative humidity% RH, system temperature ºC (T)
Measurement data stored and printed in real time
Simple operation, easy to carry, anti-interference, good repeatability, fast response, high sensitivity, good stability
RS232 serial port output can be customized Technical Parameters
Measuring range: -100 ～ 0 ℃ / -80 ～ + 20 ℃ / -60 ～ + 20 ℃ (depending on the selected sensor)
Dew point accuracy: ± 2 ℃
Probe: DMT 152 / DMT242 / DMT143
Power supply mode: internal battery
Probe protection: stainless steel sintered filter
Response time: 63% [90%] 90s / 450s
Ambient temperature: -20 ～ + 60 ℃
Relative humidity: 0 ～ 100% RH
Pressure: 0 ～ 10bar
Sample gas flow rate: no effect
Output: USB output
Charging time: more than 8 hours (with automatic charging protection)
Dimensions: 310mm × 290mm × 280mm
Weight: 4.6kg
Introduction
The C1010 precision dew point meter is mainly used for the detection of dry gas and micro-water. The measured gases are: H2, SF6, N2, O2, Ar2, CO2, compressed air and other gases. The C1010 precision dew point meter is suitable for power, chemical, Aviation, metallurgy, food and other industries.
