- Model NumberBTQ
- Brand NameHFBLSCKDZKJ
- Payment TermsT/T, paypal
Brief introduction:

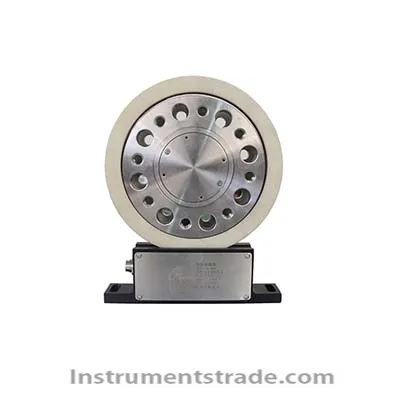

BTQ flanged torque sensor adopts the machine's compact flange-flanged connection design. One end of its rotor is installed at the transmission end, and the other end is directly connected to the load end, which can be easily installed into the transmission system. In addition, the speed measurement unit is built into the sensor.
Flange type torque sensor can be directly installed on the transmission equipment. The stator ring is fixed to the outer ring of the rotating rotor and supported by the stator base.
Sensor volume, size, material, measurement system and signal transmission are designed specifically for severe and complex engine test bench conditions.
Product features:
409 strain flange torque sensor, built-in digital measurement signal conditioning unit, through contactless transmission, direct data to the standard analog or digital signal output.
The rotor rotates in the stator ring, and no mechanical bearings are allowed to be used, so there is no wear and tear.
0.5 or 0.1 accuracy level, optional voltage or frequency signal output
High precision magnetoelectric rotation Angle/speed measurement unit, dust and moisture proof
Rs-232c interface to realize sensor parameter identification, setting, measurement and zero point balance
The axial dimension is very small
Compact flange-flange joint design
Digital contactless signal transmission
No bearing, no maintenance
System self - check function
Performance parameters:
1. Range N/m + + 10... 300 k Nm
2. Overload capacity :120%
3. Output signal: 5-15khz 0-10v 4-20ma
4. Accuracy grade: 0.5%, 0.25%, 0.1%
5. Power supply: 24VDC
6. Working speed: 0-15000 RPM
7. Response frequency: 100 microns
8. Insulation resistance: > 200 m Ω
9. Zero drift: <0.5%
10. Repeatability: <0.1%
11. Linearity: <0.1%
12. Lag: <0.1%
13. The environment temperature: - 40-60 ℃
14. Relative humidity: <90%RH
15. Operating temperature range: - 10-70 ℃
16. The storage temperature range: 25-80 ℃
17. Sensor amplitude: 10V
18. Sensor power consumption: approximately 4W
19. Sensor current consumption: 100MA
20. Response time of dynamic strain wave of strain gauge: 3.2 x10-6s
21. Sensor housing: strong anodized aluminum
