BT-800HC 8 million video microscope

Product ID：GSXshipin006

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT-800HC

Brand NameSZBAITEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

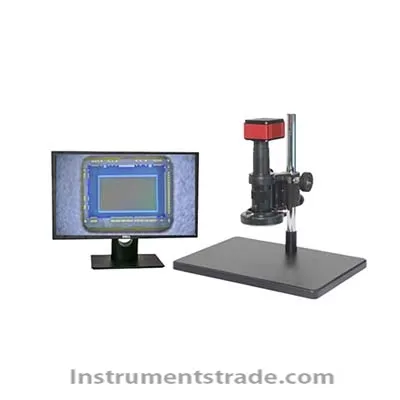

BT-800HC 8 million video microscope
Introduction:
The BT-800HC high-definition video microscope is a highly integrated miniature machine vision system that integrates an image acquisition unit, an image processing unit, image processing software, and a network communication device.
No need for a computer to take photos, record videos, display images, compare images, save crosshairs, annotate measurement data graphics, and export data to Excel; Point spacing, point line spacing, line spacing, parallel line, center distance, Dim sum distance, center distance, angle, radian, circle, rectangle, polygon, polyline, edge distance and other measurement functions, as well as automatic edge searching, local amplification, exposure value, brightness, gain, saturation, contrast, clarity, anti reflection, manual white balance, and automatic exposure functions.
Technical parameters:

model	BT-800HC (photogrammetric measurement)
Objective magnification	0.7X ~ 4.5X
Image magnification factor	About 30X~192X (27 inch monitor), optional 22 inch
field of view	Increase the auxiliary objective lens from 3mm to 20mm and enlarge it to 40mm
resolution	3840 x 2160 8 million pixels
pixel size	1.62μm x 1.62μm
Target size	1/2.5 Color/Black and White
Output frame rate	60FPS (smooth output, no ghosting, lagging)
Focusing frame	Coarse adjustment of focusing handwheel, adjustable tightness of focusing handwheel, lifting range of 50mm
Working platform	380 * 260 (mm) black metal (standard) note; The size of the base plate and the center distance can be customized at will
External light source	BT-60A LED ring light, input voltage: AV100~240V wide voltage, continuously adjustable brightness, with a lifespan of 20000 hours.
monitor	High definition IPS 27 inch monitor/High definition IPS 21 inch monitor
FUNCTION	Measurement: point spacing, point line spacing, line spacing, center distance, Dim sum distance, center distance, angle, arc, circle, rectangle, polygon, polyline Auxiliary functions: can take photos, record videos, and save to a USB drive. Annotated, automatic edge finding, local zoom in Data export and other functions
Storage method	External USB flash drive, images, and data can be directly stored on the USB flash drive.
Development Function	Supports gigabit Ethernet port connection to computer host, software can be installed on the computer host, measurement can be operated on the computer, and photos can be taken and saved
