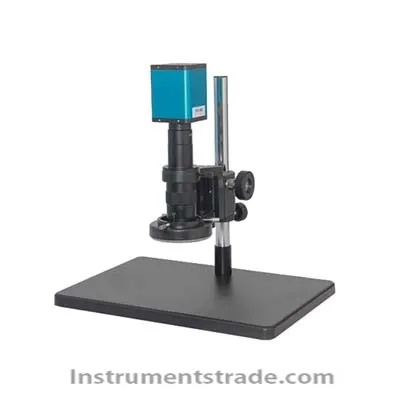

BT-301 series automatic focusing video microscope

Product ID：GSXshipin007

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT-301

Brand NameSZBAITEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

BT-301 series automatic focusing video microscope
Introduction:
T-301 series autofocus video microscope: It has a built-in autofocus system, which does not require manual adjustment of the focusing mechanism and has high focusing accuracy; External USB drives meet the storage needs of images and videos. This product is widely used in industrial testing, medical observation, teaching and research, automation systems and other fields.
characteristic:
1.Built in autofocus system
2.Exposure and white balance support manual and automatic adjustment
3.It has excellent HDR function and digital amplification function
4.Mouse operation is convenient and fast
Technical parameters:

PRODUCT MODEL	BT-301
Objective magnification	0.7X ~ 4.5X
Image magnification factor	Approximately 20X~150X (based on a 22 inch monitor)
field of view	Increase the auxiliary objective lens from 20mm to 3mm and enlarge it to 40mm
resolution	1920X1080/computer can reach 12 million pixels
Target size	1/2.8 Color/Black and White
Output frame rate	60FPS (smooth output, no ghosting, lagging)
operation temperature	0℃～50℃
Working platform	380 * 260 (mm) black metal (standard) note; The size of the bottom plate can be customized freely
External light source	BT-60A LED ring light, input voltage: AV100~240V wide voltage, continuously adjustable brightness, with a lifespan of 20000 hours.
monitor	High definition IPS 22 inch monitor. Available in 17 inch, 15 inch, and 13 inch sizes.
FUNCTION	Measurement: point spacing, point line spacing, line spacing, center distance, Dim sum distance, center distance, angle, arc, circle, rectangle, polygon, polyline Auxiliary functions: can take photos, record videos, and save to a USB drive. Annotationable, automatic edge finding, local zoom in, data export and other functions
Storage method	External USB flash drive, images, and data can be directly stored on the USB flash drive.
