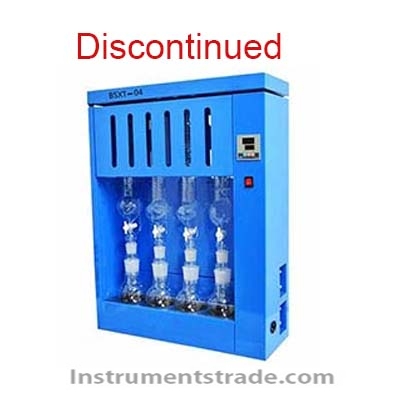

Description BSXT - 04 type Soxhlet extractor (Soxhlet extractor), also known as "the Soxhlet extraction apparatus, fat extractor or fat extractor" is mainly composed of heating extraction, solvent recovery and cooling composed of three parts. Operation can be regulated according to different reagent boiling point and the environmental temperature and heating temperature, sample extraction process with repeated immersion and extraction, so as to achieve rapid extraction purpose. Technical parameters 1. Application: can be used to extract various sample, such as food, feed, oil, soil, etc; 2. Each batch extract sample number: 4; (3) to extract the bottle volume: 250 ml /; 4. To extract the sample amount: 0.5-20 g/a; 5. Extraction time is adjustable, then report to the police; 6. The extraction solvent can be automatically recycled; 7. The temperature control range: room temperature + 5 oc to 100 oc 8. The power supply voltage: 220 v + 10 v frequency 50 hz; 9. Electric heating power: 300 w; 10. Envelop dimensions (mm) : 750 * 360 * 550; 11. Weight: 22 kg.
Description BSXT - 04 type Soxhlet extractor (Soxhlet extractor), also known as "the Soxhlet extraction apparatus, fat extractor or fat extractor" is mainly composed of heating extraction, solvent recovery and cooling composed of three parts. Operation can be regulated according to different reagent boiling point and the environmental temperature and heating temperature, sample extraction process with repeated immersion and extraction, so as to achieve rapid extraction purpose.
