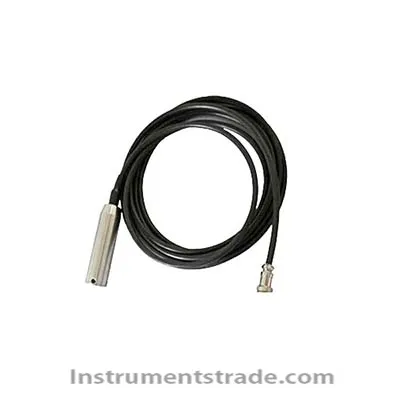

BRYL high precision pressure water level gauge

Product ID:CLQTswj024

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBRYL
    Brand NameXABRSYYB
    Payment TermsT/T, paypal
    Product introduction:
    BRYL pressure water level gauge is a high precision water level gauge which can output water level and temperature simultaneously. According to the principle of hydrostatic pressure which is directly proportional to the pressure and the water depth, the water level meter USES pressure sensor as the sensor. It is mainly composed of sensor, electronic circuit and special three-level lightning protection circuit. Adopt imported sensors, water level and temperature sensor (built-in shell temperature sensor installation is simple, reliable measurement) the accuracy, stability and reliability of the sensor are ranked among the top of the world, all electronic circuit components adopt jun grades, adopting high precision 24-bit AD converter, the accuracy, reliability and stability of the water level gauge is greatly increased.
    Application:
    Hydrologic information automatic monitoring, automatic gate monitoring system, pump station automation system, agricultural water-saving irrigation and irrigation automation system, city water supply and drainage, water company, Wells and water tank, water tank, water tank, water treatment plants, for the pool, pool, rivers, hydrological geology, reservoir and hydropower station, hydrology and water resources bureau in areas such as water level measurement and control.
    Technical parameters:
    1. Object of use: water level measurement on various occasions
    2. Measurement range (m) : 0 ~ 1, 2, 5, 10, 20, 30, 50, 100, 200
    3. Output: RS485 digital signal, standard modbus-rtu protocol or 4-20ma current signal
    4. Power supply: 9 ~ 30VDC
    5. Water level accuracy: 0.05, 0.1
    6, the temperature precision: plus or minus 0.5 or less
    7. Resolution: 1mm
    8. Stability: less than 0.02%FS/ year


  • Product introduction:
    BRYL pressure water level gauge is a high precision water level gauge which can output water level and temperature simultaneously. According to the principle of hydrostatic pressure which is directly proportional to the pressure and the water depth, the water level meter USES pressure sensor as the sensor. It is mainly composed of sensor, electronic circuit and special three-level lightning protection circuit. Adopt imported sensors, water level and temperature sensor (built-in shell temperature sensor installation is simple, reliable measurement) the accuracy, stability and reliability of the sensor are ranked among the top of the world, all electronic circuit components adopt jun grades, adopting high precision 24-bit AD converter, the accuracy, reliability and stability of the water level gauge is greatly increased.
