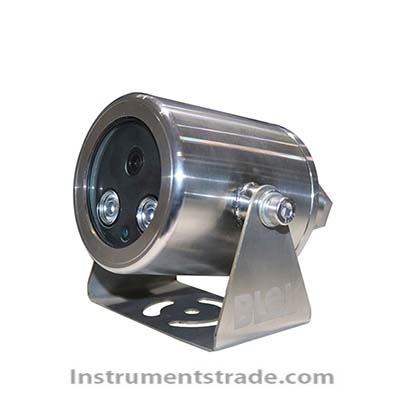

BL-EX 300PM infrared water-proof barrel camera

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Video camera > BL-EX 300PM infrared water-proof barrel camera

BL-EX 300PM infrared water-proof barrel camera

Product ID：CLQTsxj020

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Brand NameZJBLRLKJ

Payment TermsT/T, paypal

Model NumberBL-EX 300PM

Brief introduction:
Equipment made Ⅱ class explosion-proof certification and highest temperature (T) certification, the highest applicable to have A and B Ⅱ Ⅱ, Ⅱ C environment, T1 ~ T6 group explosive inflammable gas with air to form explosive mixture of 0, 1 zone and 2 zone and explosive of combustible dust in mixture with air to form 20, 21, 22 explosive dangerous location in addition to coal mine methane gas other explosive gas and dust environment. Such as: refining, oil production, gas production, chemical, fireworks production, grain processing and storage, gas stations and other environments.
Product features:
, explosion-proof identification: Exd IIC T6 Gb/ExtD A21 IP66 T80 ℃
• protection level: IP68
• product standard: Q/006-2016
• stainless steel material design, double explosion proof certification
• wide voltage design supports customized ac and dc power supply modes
• Windows glass precision processing, with self-cleaning function, with the use of hydrofluoric acid environment
Main features:
• multi-megapixel line-by-line scanning CMOS is adopted to capture the moving image without sawtooth
• coaxial hd output is supported, with clear and fine images with a resolution of 720p/1080p
• support coaxial hd output and standard definition CVBS analog output (multiplexing 1-channel BNC interface);
Switch between control lines (default HDTVI output)
• low illumination, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
• support ICR infrared filter type automatic switching, automatic color black function, to achieve day and night monitoring
• support intelligent SMART IR function to effectively prevent short-range infrared overexposure
• use matrix speckle lens to match the sensor area and greatly improve the utilization rate of light energy
• comply with IP66 waterproof design, high reliability
Technical parameters:

Model	BL-EX300PM(700TVL/1.3MP）	BL-EX300PM(700TVL/2MP）
Name	1.3 million infrared water-proof barrel cameras	Two million infrared water-proof barrel cameras
Sensor type	1.3Mega Progressive Scan CMOS	2.0Mega Progressive Scan CMOS
Total pixels	1280(horizontal) times 960(vertical)	1930(horizontal) * 1088(vertical)
Minimum illumination	0.01Lux@(F1.2,AGC ON),0 Lux with IR	0.1Lux@(F1.2,AGC ON),0 Lux with IR
Shutter	1/25 s to 1/100,000s	1/25 s to 1/50,000s
Lens	3.6mm(2.8mm,6mm,8mm,12mm,16mm optional)
Lens type	M12
Day night conversion mode	ICR infrared filter type
Synchronously	synchronous
Frame rate	720p@25fps	1080p@25fps
Hd video output	1 road BNC coaxial hd, HDTVI standards/road 1 vp/p Composite Output (75 Ω/BNC)	1 channel BNC(TVI/AHD/CVI/CVBS) can switch the output to meet HDTVI standard
Signal to noise ratio	More than 62 db	More than 62 db
Camera number	/	On/off (label no. 0-255)
Automatic gain	/	Yes
Color/black and white	Automatic/color/black and white
White balance	automatic	Automatic/manual/PUSH / 8000 k / 6000 k / 4200 k / 3200 k/keep
Backlight compensation	Yes	Yes
language	/	Chinese/English
Feature set	/	Mirror image (horizontal, vertical, center), etc
Working temperature and humidity	-40 ℃ ~ 60 ℃, humidity is less than 90% (no condensation)
Power supply	DC12V±15%
Infrared irradiation distance	50m
Power consumption	4W MAX
Protection grade	IP66
Communication	/	coaxial visual control
Communication	/	Coaxial output control protocol: hikvision-c
Size (mm)	As shown in the drawings
Weight	3kg
