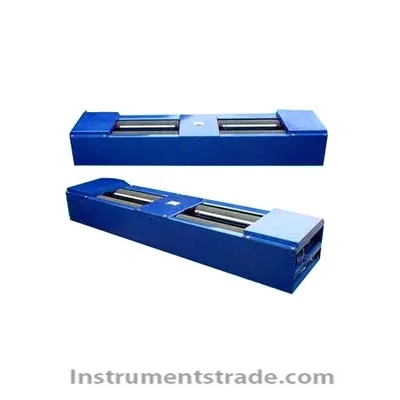

Introduction: The AYZD series roller reaction type automobile brake inspection bench is suitable for vehicle management departments, automobile manufacturers, and automobile repair shops. It can inspect the braking performance of various types of automobiles within 15 tons. Automobile braking performance is one of the key items in automobile safety performance testing. TSZD series roller reaction type automobile brake test bench is a special inspection equipment for detecting automobile brake performance. The device can test the braking force of the left and right wheels on the same axle of the vehicle at the same time, and uses a digital display instrument to directly display the maximum value of the left and right wheel braking. Technical Parameters: Maximum allowable axle load mass: (kg) 13000 Roller diameter×length: (mm) Φ245×1100 Roller center distance: (mm) 465 Distance between left and right rollers: (mm) 680 Zero point error of braking force indication: (N) ±20 Braking force indication error: (%) ≤±3 Motor power: (kw) 2×11kw Dimensions (L×W×H): (mm) 4300×970×410
Introduction: The AYZD series roller reaction type automobile brake inspection bench is suitable for vehicle management departments, automobile manufacturers, and automobile repair shops. It can inspect the braking performance of various types of automobiles within 15 tons. Automobile braking performance is one of the key items in automobile safety performance testing. TSZD series roller reaction type automobile brake test bench is a special inspection equipment for detecting automobile brake performance. The device can test the braking force of the left and right wheels on the same axle of the vehicle at the same time, and uses a digital display instrument to directly display the maximum value of the left and right wheel braking.
