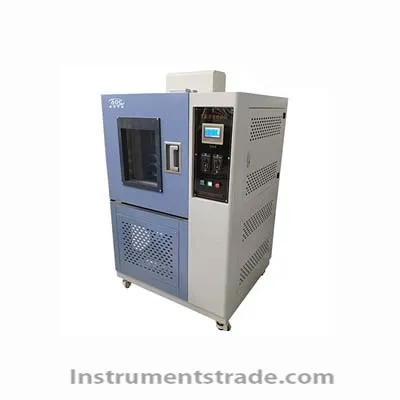

Product use: It is used to test the aging properties of nonmetallic materials and rubber products in an environment exposed to airtight and containing a certain concentration of ozone and constant temperature. Product specification (unit 1: mm): Type: AKQL-225 Studio size: D × W × H 500 × 600 × 750 Size: 1080 × 1120 × 1700 Technical parameters: 1. temperature range: 0 to 70 degrees C; 2. humidity: less than 65%R.H; 3. temperature fluctuation: + 0.5 C; 4. humidity fluctuation: 2%; 5. humidity uniformity: +2% -3%R.H; 6. temperature uniformity: less than 2 DEG c; 7. time set range: 0~999 hours; 8. ozone concentration range: 1 ~ 500pphm or 10 ~ 1000pphm; 9. ozone generator: production of ozone by high voltage soundless discharge tube 10. ozone deviation is less than 10%; 11. frame speed: 1 ~ 2r/min; 12. the flow rate of ozone air: 8 ~ 16mm/s; 13. sample state: dynamic tensile and static tension; 14. power supply voltage: AC380V;
Product use: It is used to test the aging properties of nonmetallic materials and rubber products in an environment exposed to airtight and containing a certain concentration of ozone and constant temperature.
