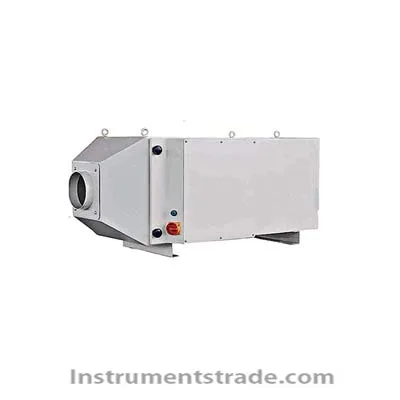

Brief introduction: Vizer AF series oil mist filter is an environmental protection product, which can completely remove the oil mist, water vapor and other pollutants generated by mechanical equipment at work, making the workshop environment fresh and pure. AF series oil mist filter is widely used in machine tool grinder, gear grinder, CNC machining center, etc. Technical parameters: Product model: AF1800 Maximum air volume (m3/h) : 1800 Static pressure (Pa) : 250 Electrical parameters: Power: 0.8 kW Voltage: 220V 50Hz Filter element L*W*H (mm) : 480*340*500 Front buffer plate: aluminum alloy wire mesh frame type filter Front strainer: 6 layers aluminum alloy wire mesh/sealed package/double-sided tape mesh Electrostatic part: Board spacing: 7mm Filter area: 0.296m2 Ionization device :(ionized wire) Diameter (mm) : Φ 0.25 Length (mm) : 6200 High voltage (KV) : 12/6 Collection device: 10m2 Rear filter: aluminum alloy screen frame filter/activated carbon filter Noise: 65db (A) Diameter (mm) : Φ 250 Weight (kg) : 130 Size L*W*H (mm) : 1500*620*660
Brief introduction: Vizer AF series oil mist filter is an environmental protection product, which can completely remove the oil mist, water vapor and other pollutants generated by mechanical equipment at work, making the workshop environment fresh and pure. AF series oil mist filter is widely used in machine tool grinder, gear grinder, CNC machining center, etc.
