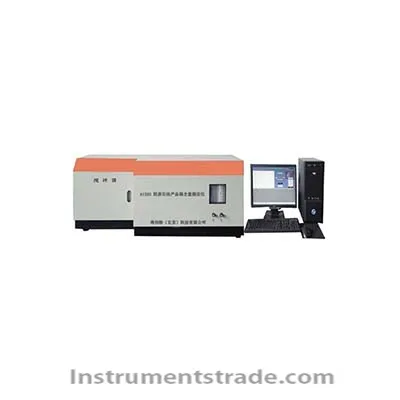

A1330 Light Petroleum Product Sulfur Content Tester Introduction
The A1330 light petroleum product sulfur content tester is designed and manufactured according to SH / T 0253. It uses micro-coulomb analysis technology and uses the oxidation method to oxidize the sample into a titratable ion through a cracking furnace. Titrate in a titration cell. The consumed electricity is calculated according to Faraday's law, and the sulfur content in the sample is calculated, which is suitable for light petroleum products with a boiling point of 40 to 310 ° C. For samples with sulfur content ranging from 0.5 to 1000 ppm, samples greater than 1000 ppm should be measured after dilution. This instrument can also measure the content of chlorine. Features
Direct human-machine dialogue for easy operation.
The computer controls the entire analysis, data processing and other processes, and displays the working status of the entire process. Parameters and results can be saved or printed as required.
The use of imported components reduces instrument noise and improves detection speed.
It has the characteristics of stable and reliable performance, easy operation, high analysis accuracy and good repeatability. Technical Parameters
Bias range: 0 to 500mv
Measurement range: 0.1 ～ 10000 ng / μl
Temperature control range: room temperature to 1000 ℃
Temperature control accuracy: ± 1 ℃
measurement accuracy:
Sample concentration (ng / μl) 0.2 RSD (%) 35
Sample concentration (ng / μl) 1.0 RSD (%) 10
Sample concentration (ng / μl) 100 RSD (%) 5
Sample concentration (ng / μl) 1000 RSD (%) 2
Air source requirements: nitrogen and oxygen
Working power: AC220V ± 10% 50Hz
Work rate: 3.5KW
Dimensions: Host: 410 × 350 × 75 (mm)
Temperature control: 530 × 420 × 360 (mm)
Blender: 290 × 270 × 360 (mm)
Injector: 350 × 130 × 140 (mm)
Introduction
The A1330 light petroleum product sulfur content tester is designed and manufactured according to SH / T 0253. It uses micro-coulomb analysis technology and uses the oxidation method to oxidize the sample into a titratable ion through a cracking furnace. Titrate in a titration cell. The consumed electricity is calculated according to Faraday's law, and the sulfur content in the sample is calculated, which is suitable for light petroleum products with a boiling point of 40 to 310 ° C. For samples with sulfur content ranging from 0.5 to 1000 ppm, samples greater than 1000 ppm should be measured after dilution. This instrument can also measure the content of chlorine.
