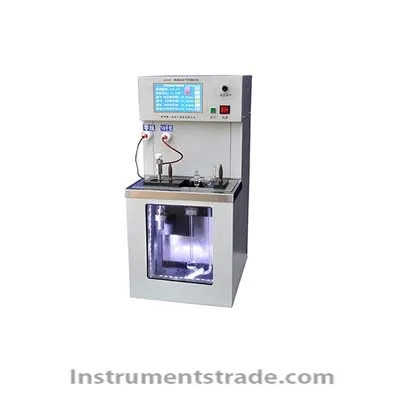

A1210 Insulating Gas Outgassing Tester Introduction
A1210 Insulating Oil Gas Outgassing Tester Applicable Standards: GB / T11142-89, NB / SH / T0810-2010, ASTM D2300. Used to determine the insulating fluid's ability to release gas under the action of an electric field with a strength sufficient to cause discharge at the liquid-gas junction. Suitable for determination of cable oil, capacitor oil and transformer oil. A1210 has simple operation and high precision, and is widely used in petrochemical, power, railway, scientific research and other departments. Features
Large screen LCD display, Chinese prompt menu, touch screen control, convenient for test operation.
The transparent constant temperature oil bath adopts advanced PID temperature control setting to make the system temperature more accurate.
The high-voltage system adopts dry-type high-voltage transformer and epoxy vacuum casting process to ensure stable and reliable output voltage.
Automatic timing, with timing alarm function, convenient to remind testers.
Transparent safety cover to ensure the safety of test personnel.
Standards can be selected according to test requirements.
Instrument identification reports can be provided to make the test results more traceable. Technical Parameters
Temperature control range: 0 ℃ ~ 100 ℃
Temperature control accuracy: ± 0.5 ℃
Test voltage: 10KV
Voltage accuracy: ± 2%
Timing range: 1 ~ 120 minutes
Timing accuracy: ± 1s
Gas flow: 3L / h
Ambient temperature: 5 ℃ ～ 40 ℃
Ambient humidity: ≤85%
Working power: AC220V ± 10%, 50Hz
Power: ≤1500W
Dimensions: 400mm × 450mm × 950mm
Weight: 38Kg
The A1210 Insulating Oil Gas Outgassing Tester is used to determine the ability of an insulating fluid to release gas under the action of an electric field with a strength sufficient to cause a discharge at the liquid-gas junction. Suitable for determination of cable oil, capacitor oil and transformer oil. A1210 Insulating Oil Gas Outgassing Tester is easy to operate and has high accuracy, and is widely used in petrochemical, electric power, railway, scientific research and other departments.
