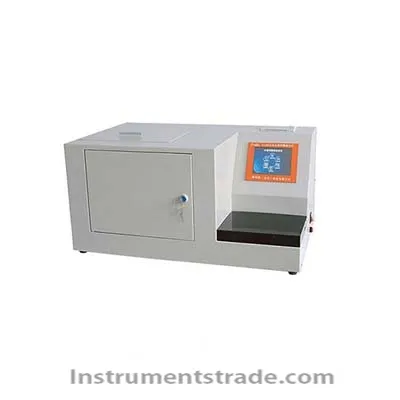

A1180 automatic water-soluble acid analyzer Introduction
The A1180 automatic water-soluble acid analyzer is designed and developed in accordance with the GB / T 7598 standard. The experiment is to mix and shake the sample with an equal volume of distilled water under specified conditions, and take its water extract to determine its pH value by colorimetry. Water-soluble acid suitable for petroleum products such as transformer oil, steam turbine oil and fuel oil resistance. Features
Integrated design, single-chip control.
The instrument has a high degree of automation.
LCD display, Chinese menu, easy to operate.
Automatically complete heating, shaking, standing, oil-water separation, color development, color comparison, display and print the measurement results. Technical Parameters
Test range: pH3.8 ～ 7.0
Measurement error: ≤ ± 0.05 pH
Repeatability: ≤0.05 pH
Applicable temperature: 5 ℃ ～ 40 ℃
Applicable humidity: ≤85%
Working power: AC220V ± 10%, 50Hz
Power: 500W
Dimensions: 680mm × 420mm × 345mm
Introduction
The A1180 automatic water-soluble acid analyzer is designed and developed in accordance with the GB / T 7598 standard. The experiment is to mix and shake the sample with an equal volume of distilled water under specified conditions, and take its water extract to determine its pH value by colorimetry. Water-soluble acid suitable for petroleum products such as transformer oil, steam turbine oil and fuel oil resistance.
