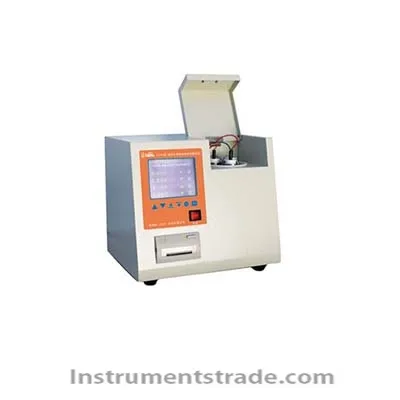

A1150 liquid medium volume resistivity tester Introduction
A1150 liquid medium volume resistivity tester conforms to DL / T421 standard, suitable for measuring the volume resistivity of insulating oil and fuel resistance, and can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments. Features
Controlled by dual CPU microcomputer.
Temperature control, detection, printing, cooling, etc. are automatically performed.
Imported converters are used to achieve high-precision measurement of volume resistivity.
With cooling and heating functions.
The overall structure is reasonable, safe and convenient. Technical Parameters
Measurement range: 0.5 × 108 ～ 1 × 1014Ωcm
Resolution: 0.001 × 107Ωcm
Repeatability: ≤15%
Reproducibility: ≤25%
Temperature control range: 0 ～ 100 ℃
Temperature control accuracy: ± 0.5 ℃
Electrode cup parameters: pole cup type: Y-18
Pole cup material: stainless steel
Display mode: LCD display
Printer: Thermal type, 36 characters, Chinese character output
Ambient temperature: 5 ℃ ～ 40 ℃
Ambient humidity: ≤85%
Working power: AC220V ± 10%, 50Hz
Power: 500W
Dimensions: 500mm × 280mm × 330mm
Weight: 17.5kg
Introduction
A1150 liquid medium volume resistivity tester conforms to DL / T421 standard, suitable for measuring the volume resistivity of insulating oil and fuel resistance, and can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments.
