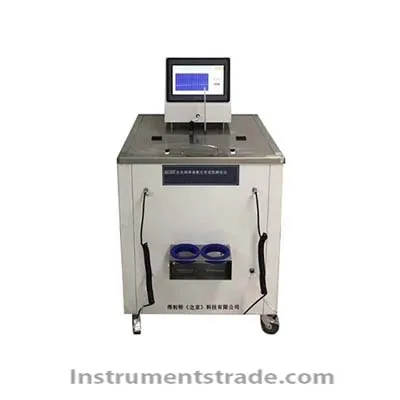

A1100 Lubricant oxidation stability tester Introduction
The A1100 Lubricant Oxidation Stability Tester is designed and manufactured in accordance with SH / T0193 and ASTM D2272 standards. It is suitable for determining the oxidation stability of new oils with the same composition (base oil and additives) and steam turbine oil in use. Features
The instrument uses a microcomputer to automatically perform detection, calculation and control. There is no need for personnel on duty during the entire test process, and the degree of automation is high. Real-time communication with the host computer, the connection method is simple and reliable.
Temperature and pressure can be calibrated at any time to ensure the accuracy of pressure and temperature. Automatically record data and test results during the test. You can query, compare and record the pressure change curve.
Automatically determine the pressure inflection point and end the test automatically.
Imported rotating device, stable speed and low noise. Two groups of oil samples can be tested simultaneously.
Imported mercury slip ring, reliable signal and long life. Technical Parameters
Working power: AC220V ± 10%, 50H
Heating power: ≤3.4KW
Temperature control range: room temperature to 200 ℃ temperature control accuracy: ± 0.1 ℃ digital precision pressure
Sensor accuracy: ± 2 ‰
Motor speed: 100 ± 3r / min
Dimensions: 600mm × 750mm × 850mm
Introduction
The A1100 Lubricant Oxidation Stability Tester is designed and manufactured in accordance with SH / T0193 and ASTM D2272 standards. It is suitable for determining the oxidation stability of new oils with the same composition (base oil and additives) and steam turbine oil in use.
