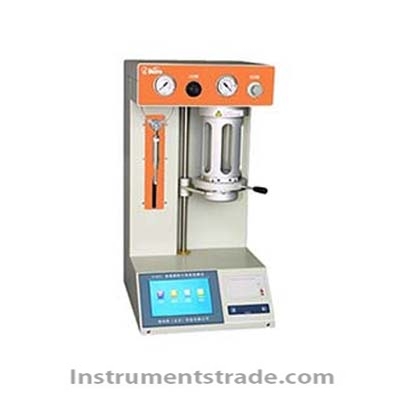

A1031 oil pollution detector Introduction
A1031 oil particle contamination detector is developed according to GB / T 18854-2002, ISO11171-1999, DL / T432-2007, GJB 420B, NAS1638, ISO4406 and other standards. Instrument for level detection. A1031 is developed based on the principle of photoresistance (shading method), which is suitable for the detection of particle pollution of hydraulic oil, lubricating oil, anti-fuel, insulating oil and turbine oil. It can provide fast, accurate, reliable and repeatable test results and complete pollution monitoring analysis reports. Widely used in aviation, aerospace, power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields. Features
Adopt the photoresistance (shading) method counting principle specified by the International Hydraulic Standards Committee.
High-precision laser sensor with wide test range, stable performance, low noise and high resolution.
Sampling method using precision syringe pump, the sampling volume can be set by itself, the sampling speed is stable, and the sampling accuracy is high.
A positive and negative pressure combined sampling system is used to degas the sample, which is suitable for the test of different viscous samples.
Built-in air purification system to ensure the test is not polluted.
Built-in multiple calibration curves, compatible with common domestic and foreign standards for calibration.
Built-in 8 commonly used standards such as GJB-420B, NAS1638, ISO4406 and ГOCT17216-71, support custom standard test, and can set the required standard according to customer needs.
Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries.
Color touch screen operation, built-in printer, simple and elegant structure, simple and convenient operation.
Full-featured automatic operation, Chinese input, with data storage and printing functions.
Built-in data analysis system can automatically determine the sample level according to the standard.
With RS232 interface, it can be connected to a computer or laboratory platform for data processing.
The particle size measurement test station "China Aviation Industry Particle Size Measurement Station" calibration report can be provided for a fee. Technical Parameters
Light source: semiconductor laser
Particle size range: 0.8um ~ 500um
Detection channel: 8 channels can be set at any size
Resolution: better than 10%
Repeatability: RSD <2%
Viscosity range: up to 350mm2 / s (cSt)
Sampling volume: 0.2 ~ 1000ml
Sampling accuracy: better than ± 1%
Sampling speed: 5mL / min ~ 80mL / min
Maximum vacuum of the pressure chamber: 0.08MPa
Maximum positive pressure of the pressure chamber: 0.8MPa
Limit coincidence error: 10,000 capsules / mL
Working power: AC220V ± 10%, 50Hz
Introduction
A1031 oil particle contamination detector is developed according to GB / T 18854-2002, ISO11171-1999, DL / T432-2007, GJB 420B, NAS1638, ISO4406 and other standards. Instrument for level detection. A1031 is developed based on the principle of photoresistance (shading method), which is suitable for the detection of particle pollution of hydraulic oil, lubricating oil, anti-fuel, insulating oil and turbine oil. It can provide fast, accurate, reliable and repeatable test results and complete pollution monitoring analysis reports. Widely used in aviation, aerospace, power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
