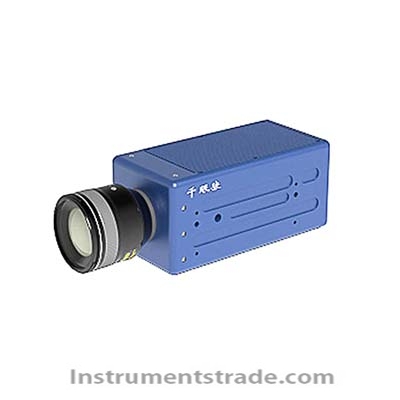

5KF10(1 megapixel 4000 frames) high speed camera

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Video camera > 5KF10(1 megapixel 4000 frames) high speed camera

5KF10(1 megapixel 4000 frames) high speed camera

Product ID：CLQTsxj010

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Brand NameHFFHJDGKXXJS

Payment TermsT/T, paypal

Model Number5KF10

Brief introduction:
The 5KF10 high-speed camera supports USB 3.0 and gigabit Ethernet dual interfaces, built-in 16GB of high speed memory capacity, with up to 4GB/S image acquisition speed.
Product features:
1. 400M bytes/s of high-speed data transmission, and 40 seconds to transfer all video to PC.
2. Multi-camera synchronous shooting is supported with synchronization accuracy up to 1/100 microsecond
3. Compatible with nikon, pentax, Canon and other SLR lenses
4. The acquisition time control is accurate to 1/100 microsecond
5. Support intelligent image trigger function of 16 regions
6. Remote shutter release
7. Encoder input interface
8. With track tracking analysis software, the moving speed and acceleration of the target can be calculated
9, free warranty for 3 years, domestic maintenance, 1 week to repair the fault, more than 1 week to provide replacement machine
Application:
1, machine tool spindle and other high-speed rotary mechanical equipment status detection
2. Fluid dynamics research
3. High voltage discharge and lightning strike experiment
4. Product surface quality scanning
5. Precise time measurement
6. Product drop test and collision test
7. Three-dimensional high-speed measurement
Technical parameters:

Resolution ratio	1280×860
Pixel size	14um×14um
Frame rate	Frame rate	Resolution ratio
	4000FPS	1280×860
	8000FPS	1280×430
	23500FPS	1280×128
	47000FPS	1024×64
Maximum memory	16GB
Dynamic range	60
Precision	10bit
Sensitivity	ISO15000,550nm
Exposure time	1us
Shutter	Global shutter
Colour	Monochrome/color
Window acquisition	Yes
Check	Yes
Power supply	12V
Interface	USB 3.0/1000BaseT
Lens interface	F/K/E/C
Power	＜26W
Dimensions (excl. lenses)	242mm×120mm×110mm
