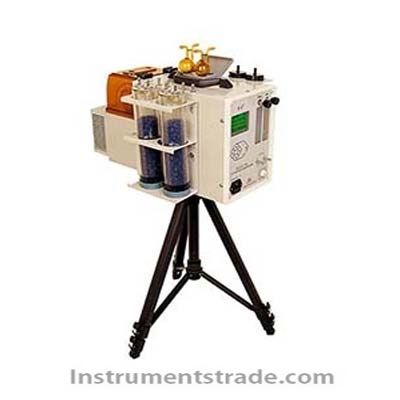

2021-S automatic continuous pollution harmful air sampler

Product ID：HQCYqtdq003

Price: Please inquire PDF Format

Supply Ability:20

Port:SHENZHEN

Product Introduction
Consulting

Model Number2021-S

Brand NameYM

Payment TermsT/T western union paypal

Introduction
The instrument uses the solution absorption method for 24 hours constant temperature, constant current collection of SO2, NOx, etc.. The sampler in view of the present market sampler some deficiencies, reference and the characteristics of similar foreign products, in small, portable, constant temperature, and flow stability have greatly improved, especially in environmental monitoring, environmental assessment, health, labor, safety, military, scientific research, education, and other departments for routine monitoring of gaseous substances.
Features
The two 24 hours of constant temperature, constant flow design, sampling mode is flexible, can be separately controlled
The small volume, light weight, convenient carrying, simple operation
The unique design of high precision sampling pump, greatly improve the stability, long service life, low noise
The electronic meter automatically precise control flow, good flow calibration software, convenient flow calibration
The real-time monitor pressure, temperature gauge, automatic compensation of flow deviation, further optimize the flow accuracy
The design of efficient anti dry dryer, effectively prevent the misoperation caused the absorption liquid suck, enhance the safety of equipment
The high quality filter dust filter, realizing particle filtering function, prevent the entry of gas path interference sampling, sampling pump and road protection at the same time
The dual color design, realize easily and accurately connected gas path, easy to use
The wide temperature LCD, suitable for cold regions, the popular software interface, to achieve a good human-computer interaction
The unique design of constant temperature box, constant speed, prevent freezing and suitable solution into different specifications of the absorption bottle
The alpine region especially for the design of constant temperature box insulation sleeve, further improve temperature heat preservation ability
The brown cover design, the sampling two level light
The quality of geological solid tripod for customers to choose, suitable for strong winds and other inclement climate sampling
The automatic calculation of cumulative sampling volume, and at the same time, according to air temperature conversion sampling volume under standard conditions
The atmospheric pressure can be input and measurement, suitable for low pressure environment
The sampling data can be stored, printed
The sampling process of automatic power failure to save data, the call can recover after sampling
Technical parameter

Parameter	Range	Resolution	Accuracy
Sample flow	(0.18~0.22)L/min,constant flow rate at 0.20L/min	0.01L/min	Better than ±5%
Sample time	99 hours 59 minutes set freely	1min	Better than±0.2%
Interval time	99 hours 59 minutes set freely	1min	Better than±0.2%
Sample times	(1~99)times	—	—
barometric pressure	(50~130)kPa	0.01kPa	Better than±500Pa
Temperature(inlet)	(-30~99)℃	0.1℃	Better than±1.0℃
Pressure(inlet)	(-20~0)kPa	0.01kPa	Better than±2.5%
Constant temperature	(15~30)℃	0.1℃	Better than±2.0℃
Respond time	When the temperature decline from 24℃ to 16℃ the respond time≤20min
instrument noise	≤55dB(A)
Dimension	(LxWxH:180x427x320)mm
Weight	About 6.5kg
Power supply	AC220V±10%, 50Hz or 9011 JIntelligent ac/dc mobile power supply(optional)
Consumption	<80W
