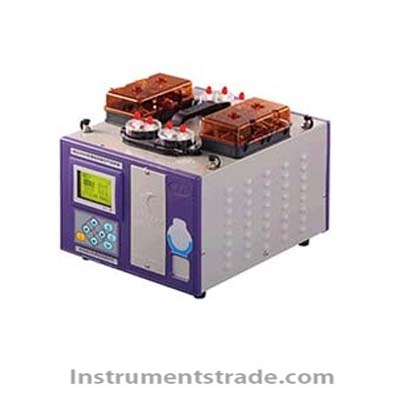

2020S intelligent four channel pollution gas sampler

Product ID：HQCYqtdq010

Price: Please inquire PDF Format

Supply Ability:20

Port:SHENZHEN

Product Introduction
Consulting

Model Number2020S

Brand NameYM

Payment TermsT/T ， paypal

Brief introduction
This instrument is designed by using solution absorption method, which is designed to collect four SO2,, NOX, etc.. For environmental protection, health, labor, safety, military, scientific research, education and other departments for gaseous substances routine or emergency monitoring.
Features
The small volume, light weight, convenient carrying, simple operation
The unique design of high precision sampling pump, greatly improve the stability, long service life, low noise
The electronic meter automatically precise control flow, good flow calibration software, convenient flow calibration
The real-time monitor pressure, temperature gauge, automatic compensation of flow deviation, further optimize the flow accuracy
The built-in lithium battery, high efficiency, long continuous working time, realization of AC and DC
The design of efficient anti dry dryer, effectively prevent the misoperation caused the absorption liquid suck, enhance the safety of equipment
The high quality filter dust filter, realizing particle filtering function, prevent the entry of gas path interference sampling, sampling pump and road protection at the same time
The four line color design, realize easily and accurately connected gas path, easy to use
The sampling design four, sampling mode is flexible, can be separately controlled
The wide temperature LCD, suitable for cold regions, the popular software interface, to achieve a good human-computer interaction,
The absorption bottle holder with heating, automatic heating temperature measurement, prevent freezing and suitable solution into different specifications of the absorption bottle
The quality of geological solid tripod for customers to choose, suitable for strong winds and other inclement climate sampling
The automatic calculation of cumulative sampling volume, and at the same time, according to air temperature conversion sampling volume under standard conditions
The brown cover two sampling design, to avoid light
The atmospheric pressure can be input and measurement, suitable for low pressure environment
The storage of large amount of data, can realize the print output
The sampling process of automatic power failure to save data, the call can recover after sampling
Technical parameter

Parameter	Range	Resolution	Accuracy
Sample flow range	(0.2-1.0)L/min×4	0.01L/min	≤±5%
Sample time	99 hours 59 minutes set freely	1min	≤±0.2%
Interval time	99 hours 59 minutes set freely	1min	≤±0.2%
Sample times	(1-99)times	—	—
Temperature(inlet)	(-30~99)℃	0.1℃	≤±1.0℃
Pressure(inlet)	(-20~0)kPa	0.01kPa	≤±2.5%
barometric pressure	(50~130)kPa	0.01kPa	≤±500Pa
Noise	≤55dB(A)
Dimension	(LxWxH) 260x300x255mm
Weight	about 4kg
Power supply	AC220V±10%, 50Hz or DC12V/3A(built-in)
Consumption	≤35W(Contains no heater)
